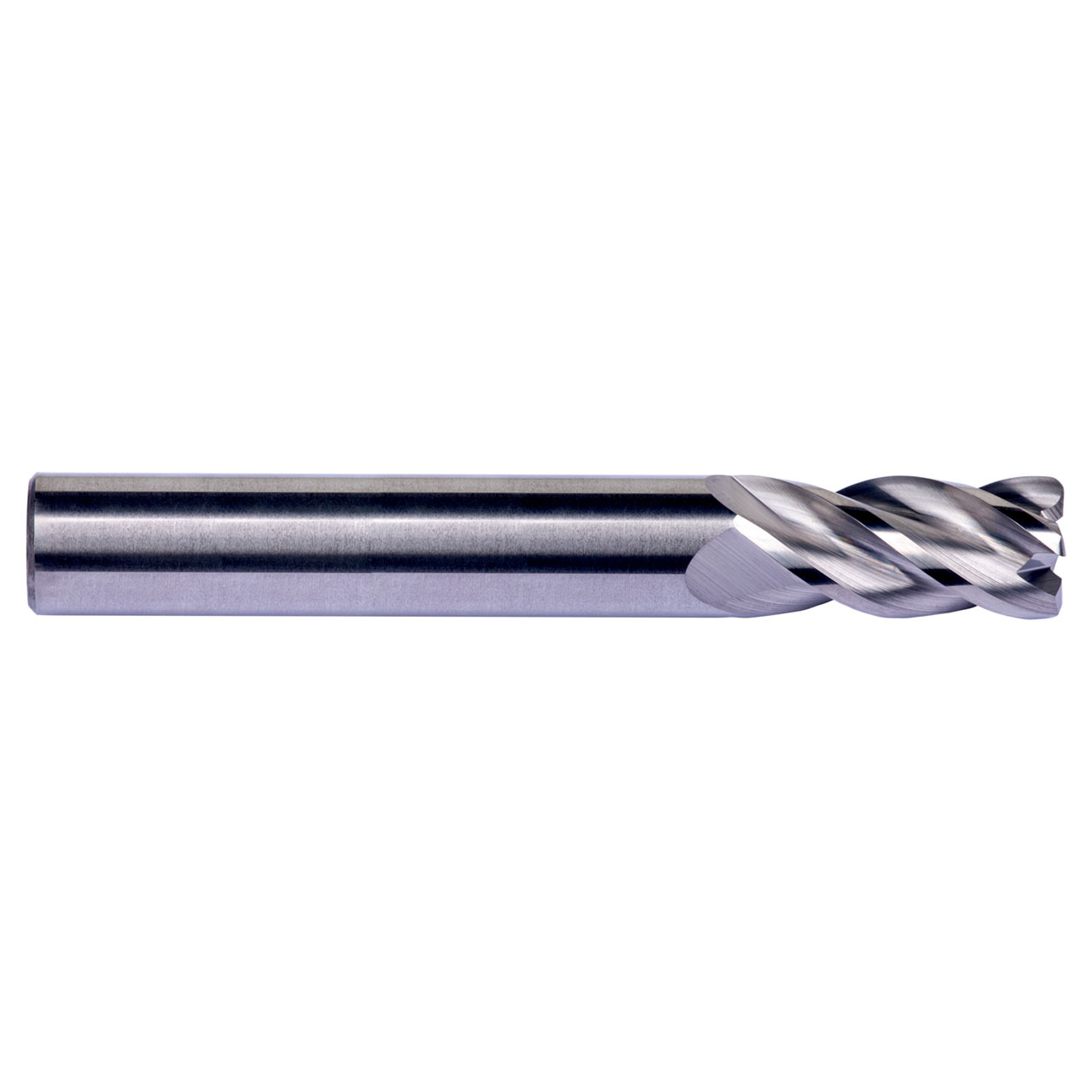

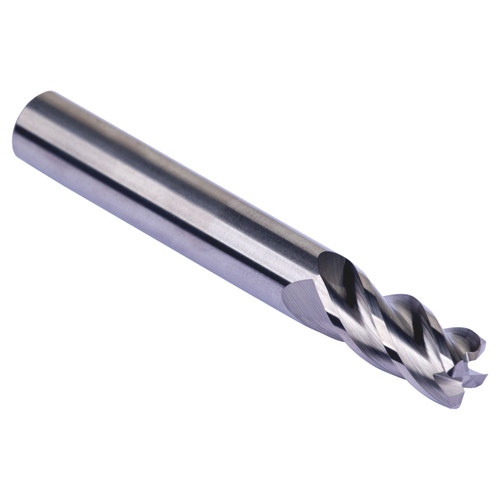

Name: Dormer 8030314 | 4.00mm Diameter x 6.00mm Shank x 12.00mm Maximum Depth of Cut x 57.00mm OAL x 0.50mm Radius x 40 Degree Helix Angle 4 Flute Bright Coated HM S662 Corner Radius End Mill
Brand: Dormer
SKU: 25211948
Price: 52.08 USD
Availability: InStock

Dormer 8030314 | 4.00mm Diameter x 6.00mm Shank x 12.00mm Maximum Depth of Cut x 57.00mm OAL x 0.50mm Radius x 40 Degree Helix Angle 4 Flute Bright Coated HM S662 Corner Radius End Mill

$86.80 $52.08

(You save $34.72)

Brand:

Dormer

Mill Diameter (Decimal Inch):

0.1575"

Mill Diameter (mm):

4.00mm

Number of Flutes:

Finish/Coating:

Bright

Material:

Shank Diameter (Decimal Inch):

0.2362"

Shank Diameter (mm):

6.00mm

Overall Length (Decimal Inch):

2.2441"

Overall Length (mm):

57.00mm

Corner Radius (mm):

0.50mm

interval quantity:

SKU:

25211948

UPC:

Weight:

0.06 LBS

Minimum Purchase:

1 unit

Shipping:

Calculated at Checkout

Features
Reviews
Other Details

With a corner radius to reduce chipping and improve tool life, S622 milling cutters from Dormer have a positive geometry giving smooth cutting for high performance milling of non-ferrous materials. They are capable of slotting, ramping, plunging and contouring, and will give clean and accurate results thanks to the bright finish which prevents workpiece material from sticking to the cutting edges of the tool and also reduces friction. S662 cutters come with a differential pitch to reduce chatter and vibrations for improved surface finish and tool life.

Product Specifications

Max Depth of Cut (mm)	12mm
Connection Diameter (Inch)	0.2362"
Cutting Diameter (Inch)	0.1575"
Overall Length (Inch)	2.2441"
Material Code	HM
Radial Rake Angle	10
No of Flute	4
Flute Helix Angle	40
Corner Radius (mm)	0.5mm
Coating	Bright
Surface Color	Bright Silver
Country of origin	Malaysia
