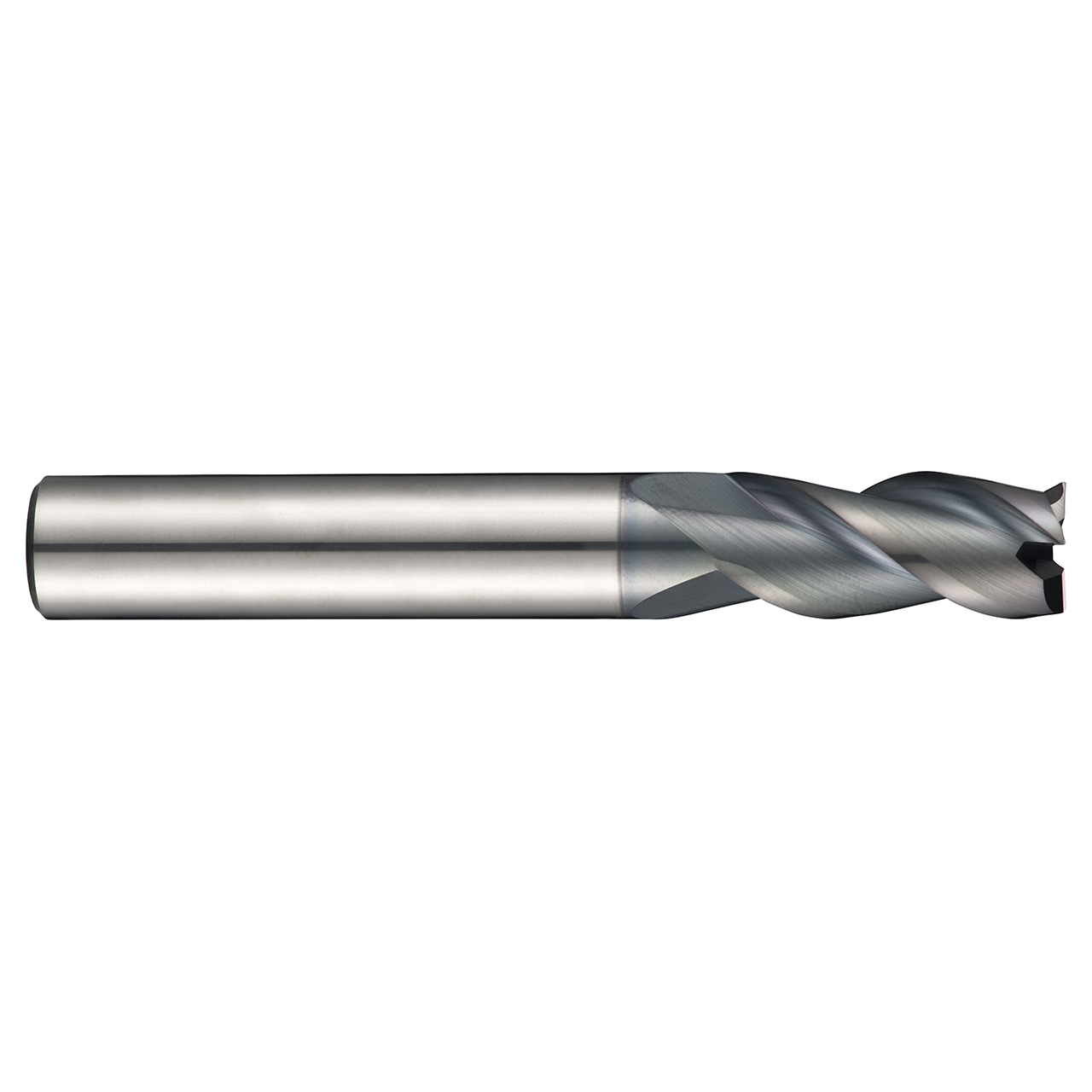

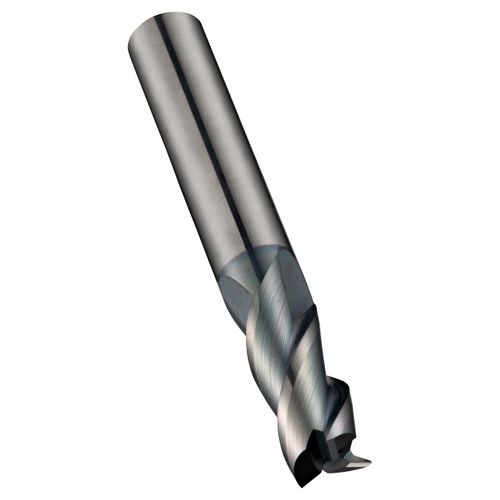

S713 3-flute milling cutters from Dormer are manufactured from premium carbide to give great performance and longer tool life and have an aluminium chrome nitride coating for improved performance when milling difficult to machine materials and further improving tool life. They come with a 40 degree helix which is great for high performance slotting and profiling on CNC machines, and the medium flute length gives you the extra rigidity needed when milling standard slots. S713 3-flute cutters are highly versatile and can be used for plunging, ramping and profile milling in stainless steels, steels and cast iron.
Max Depth of Cut (mm) | 25mm |
Connection Diameter (Inch) | 0.4724" |
Cutting Diameter (Inch) | 0.4724" |
Overall Length (Inch) | 2.9528" |
Material Code | HM |
Radial Rake Angle | 10 |
No of Flute | 3 |
Flute Helix Angle | 40 |
Coating | AlCrN |
Surface Color | Black-Deep Purple |
