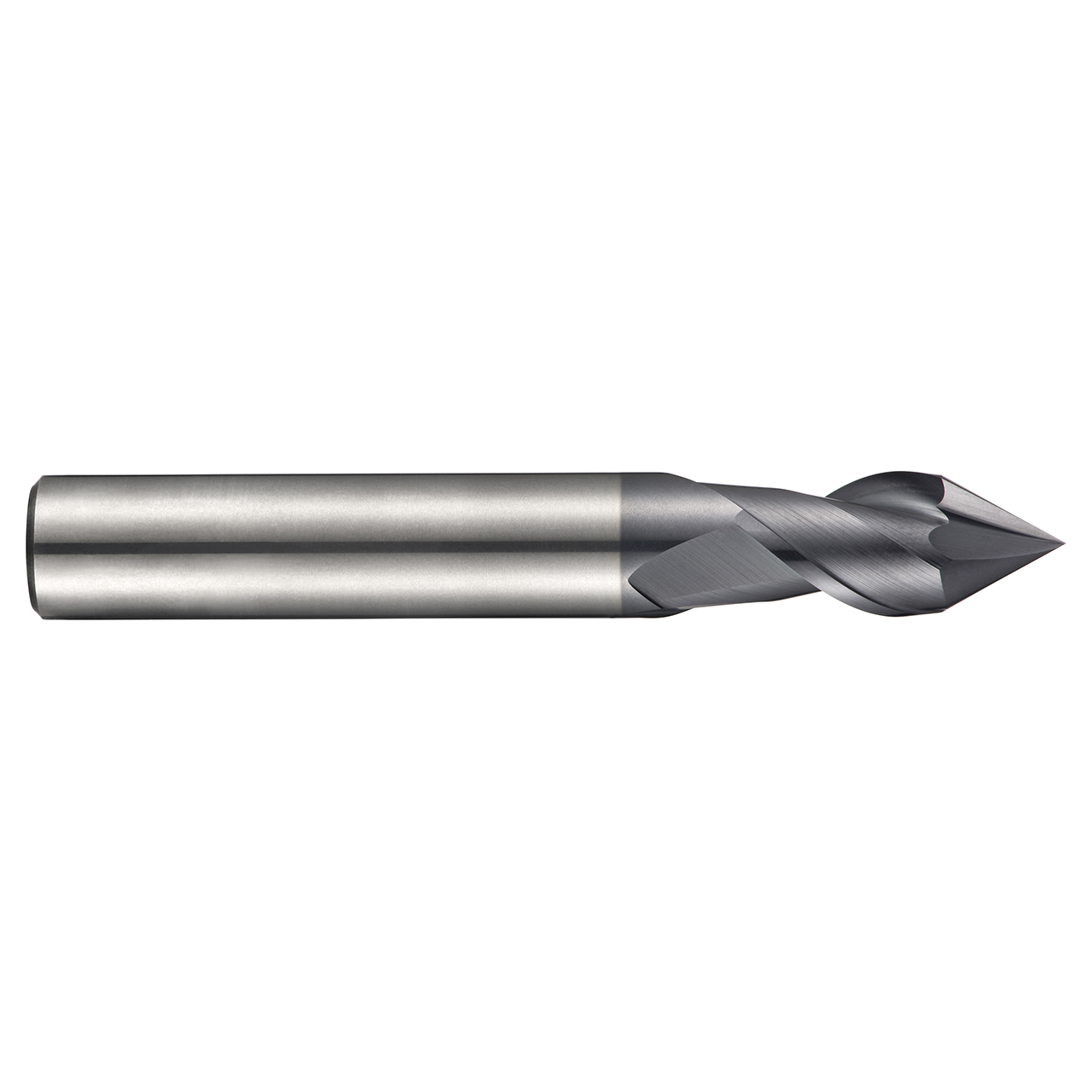

Name: Dormer 6706887 | 4.00mm Diameter x 4.00mm Shank x 12.00mm Maximum Depth of Cut x 50.00mm OAL x 40 Degree Helix Angle 2 Flute AlTiN Coated HMS739 Corner Chamfer End Mill
Brand: Dormer
SKU: 25141223
Price: 54.66 USD
Availability: InStock

Dormer 6706887 | 4.00mm Diameter x 4.00mm Shank x 12.00mm Maximum Depth of Cut x 50.00mm OAL x 40 Degree Helix Angle 2 Flute AlTiN Coated HMS739 Corner Chamfer End Mill

$91.10 $54.66

(You save $36.44)

Brand:

Dormer

Mill Diameter (Decimal Inch):

0.1575"

Mill Diameter (mm):

4.00mm

Number of Flutes:

Finish/Coating:

AlTiN

Material:

Shank Diameter (Decimal Inch):

0.1575"

Shank Diameter (mm):

4.00mm

Overall Length (Decimal Inch):

1.9685"

Overall Length (mm):

50.00mm

interval quantity:

SKU:

25141223

UPC:

7320760684368

Weight:

0.02 LBS

Minimum Purchase:

1 unit

Shipping:

Calculated at Checkout

Features
Reviews
Other Details

Dormer's S739 2-flute chamfer mills have a 60 degree point for high performance chamfer milling on CNC machines and a short 2-flute design, providing high rigidity for increased strength and reduced vibration. Made from premium carbide giving superior performance and longer tool life, the tools have an aluminium titanium nitride coating which prevents workpiece material from sticking to the cutting surfaces of the tool so you get clean, accurate results. S739 2-flute milling cutters are suitable for contour milling in steels, stainless steels and cast irons.

Product Specifications

Max Depth of Cut (mm)	12mm
Connection Diameter (Inch)	0.1575"
Cutting Diameter (Inch)	0.1575"
Overall Length (Inch)	1.9685"
Material Code	HM
Radial Rake Angle	10
No of Flute	2
Flute Helix Angle	40
Coating	AlTiN
Surface Color	Black-Deep Purple
Country of origin	Malaysia
