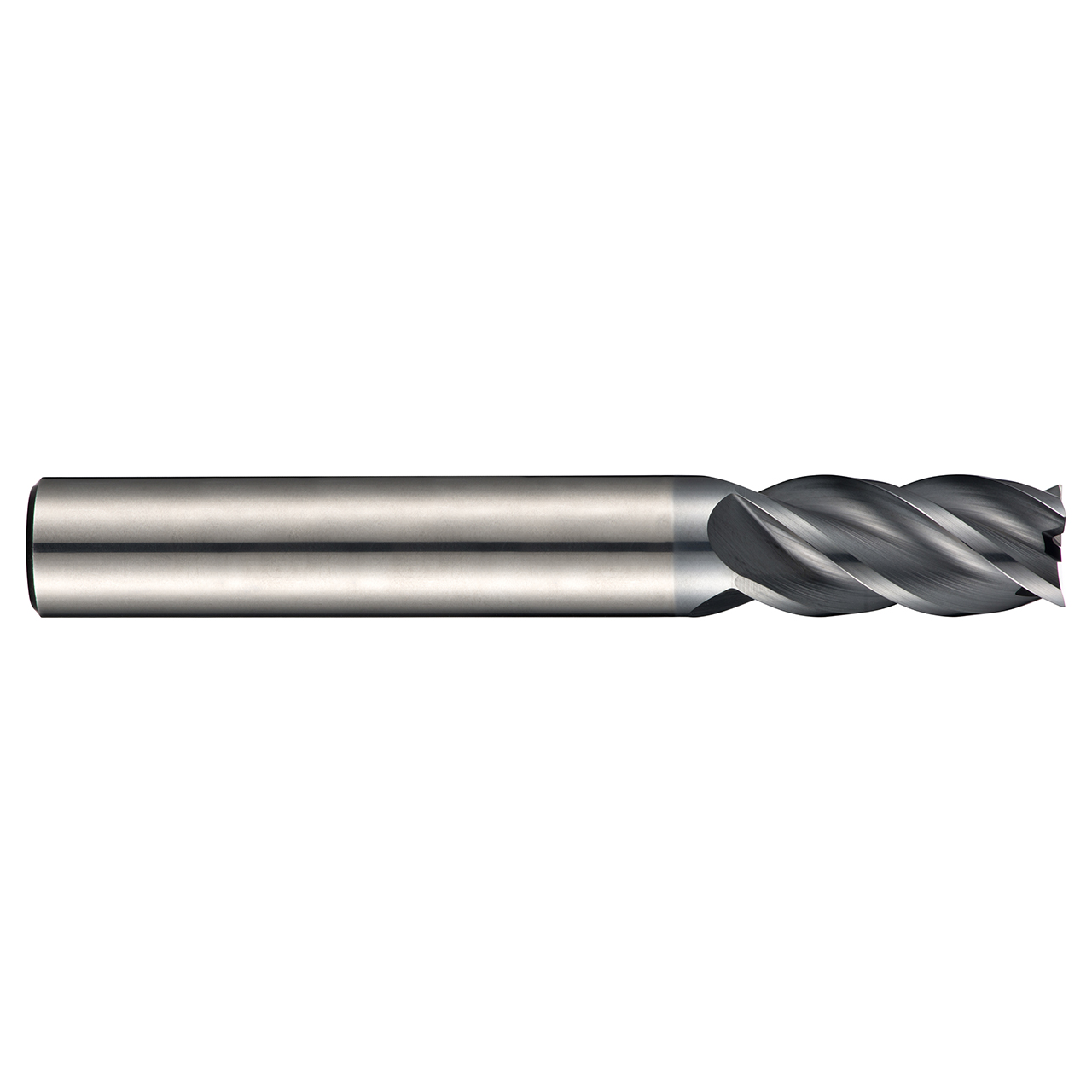

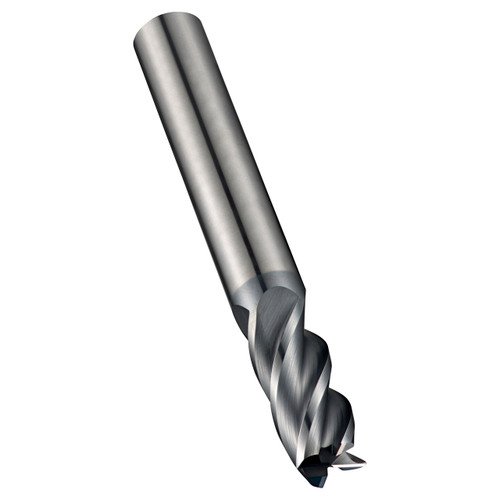

S761 4-flute milling cutters have a 40 degree helix with unequal flute divide which reduces vibration and improves surface finish when milling using CNC machines, whilst the medium length flute gives high rigidity for standard profile milling. The tools have an aluminium chrome nitride coating which improves performance when milling hard to machine materials and prolongs tool life, whilst the premium carbide used in manufacture further extends tool life and ensures superior performance. S761 4-flute milling cutters can be used for plunging, ramping and profile milling in cast iron, steels and stainless steels, making them a very versatile choice.
Max Depth of Cut (mm) | 26mm |
Connection Diameter (Inch) | 0.4724" |
Cutting Diameter (Inch) | 0.4724" |
Overall Length (Inch) | 3.2677" |
Material Code | HM |
Radial Rake Angle | 10 |
No of Flute | 4 |
Flute Helix Angle | 40 |
Coating | AlCrN |
Surface Color | Black-Deep Purple |
