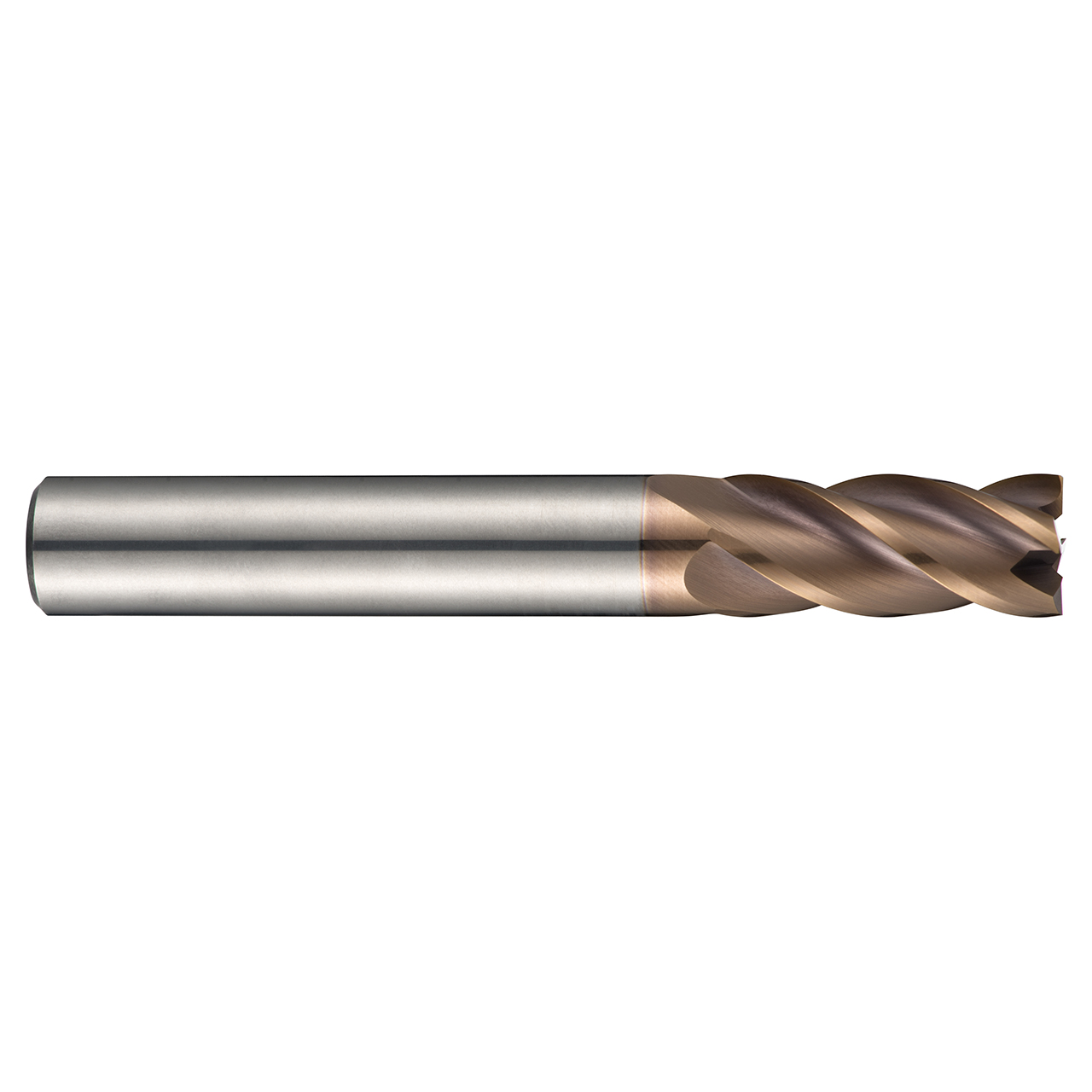

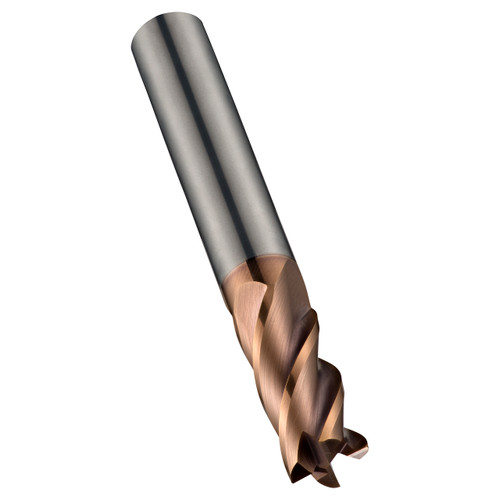

Dormer 6707011 | 12.00mm Diameter x 12.00mm Shank x 26.00mm Maximum Depth of Cut x 83.00mm OAL 4 Flute TiSiN Coated HM S766 Square End Mill

SKU: 25141337 Weight: 0.27 LBS Minimum Purchase: 1 unit
UPC: 7320760685600
$304.00 $182.40
(You save $121.60)
Shipping: Calculated at Checkout

About This Item

S766 4-flute milling cutters are manufactured from premium carbide and have a titanium silicon nitride coating for superior performance, extended tool life and great results when milling difficult to machine materials. They are suitable for plunging, ramping and profile milling in steels, stainless steels and cast iron. High rigidity for standard profile milling is provided by the medium length flute, whilst the unequal helix and unequal flute divide on S766 cutters is designed to reduce vibration and improve surface finish when the tools are used in CNC machines.


Product Specifications
Max Depth of Cut (mm)26mm
Connection Diameter (Inch)0.4724"
Cutting Diameter (Inch)0.4724"
Overall Length (Inch)3.2677"
Material CodeHM
Radial Rake Angle10
No of Flute4
Corner Chamfer Angle45
Corner Chamfer Width (mm)0.2mm
CoatingTiSiN
Surface ColorRose Gold
Country of originMalaysia
