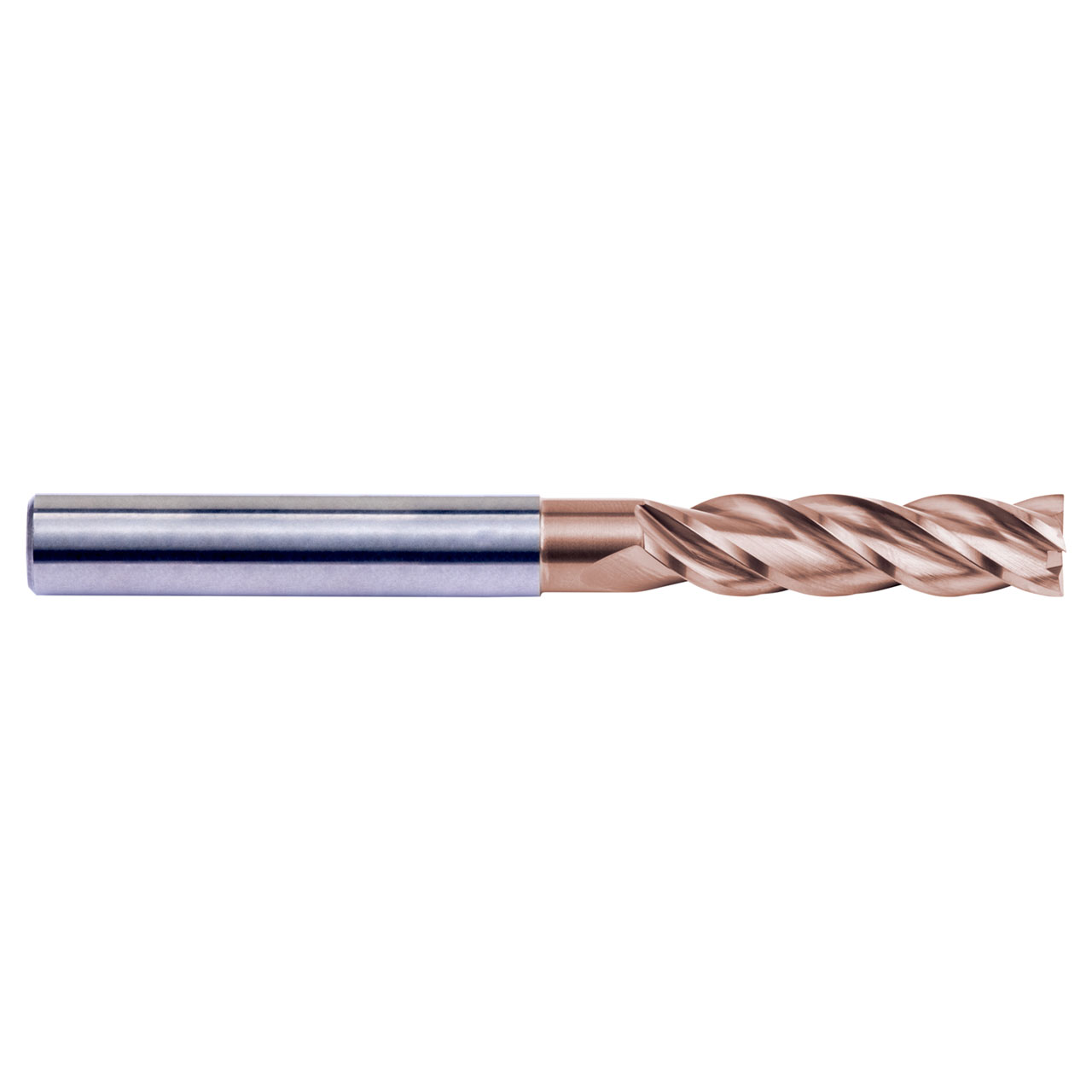

Dormer S7685.0 | 0.1969" Diameter x 2.9528" OAL 4 Flute TiSiN Coated Square End Mill

$75.00
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25211976
Weight:
1.07 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

S768 long series milling cutters make it possible to machine deeper walls and pockets, and have a neck recess to avoid contact with walls when shoulder milling. With a positive geometry providing a smooth cutting action to reduce work hardening, the tools have a titanium silicon nitride coating which provides excellent wear resistance and reduces friction, increasing tool life. S768 milling cutters have an unequal helix which serves to reduce chatter and vibration for improved surface finish and tool life.


Product Specifications
Usable Length (mm)32mm
Max Depth of Cut (mm)19mm
Connection Diameter (Inch)0.2362"
Cutting Diameter (Inch)0.1969"
Overall Length (Inch)2.9528"
Material CodeHM
Radial Rake Angle10
No of Flute4
Corner Radius (mm)0.1mm
CoatingTiSiN
Surface ColorRose Gold
