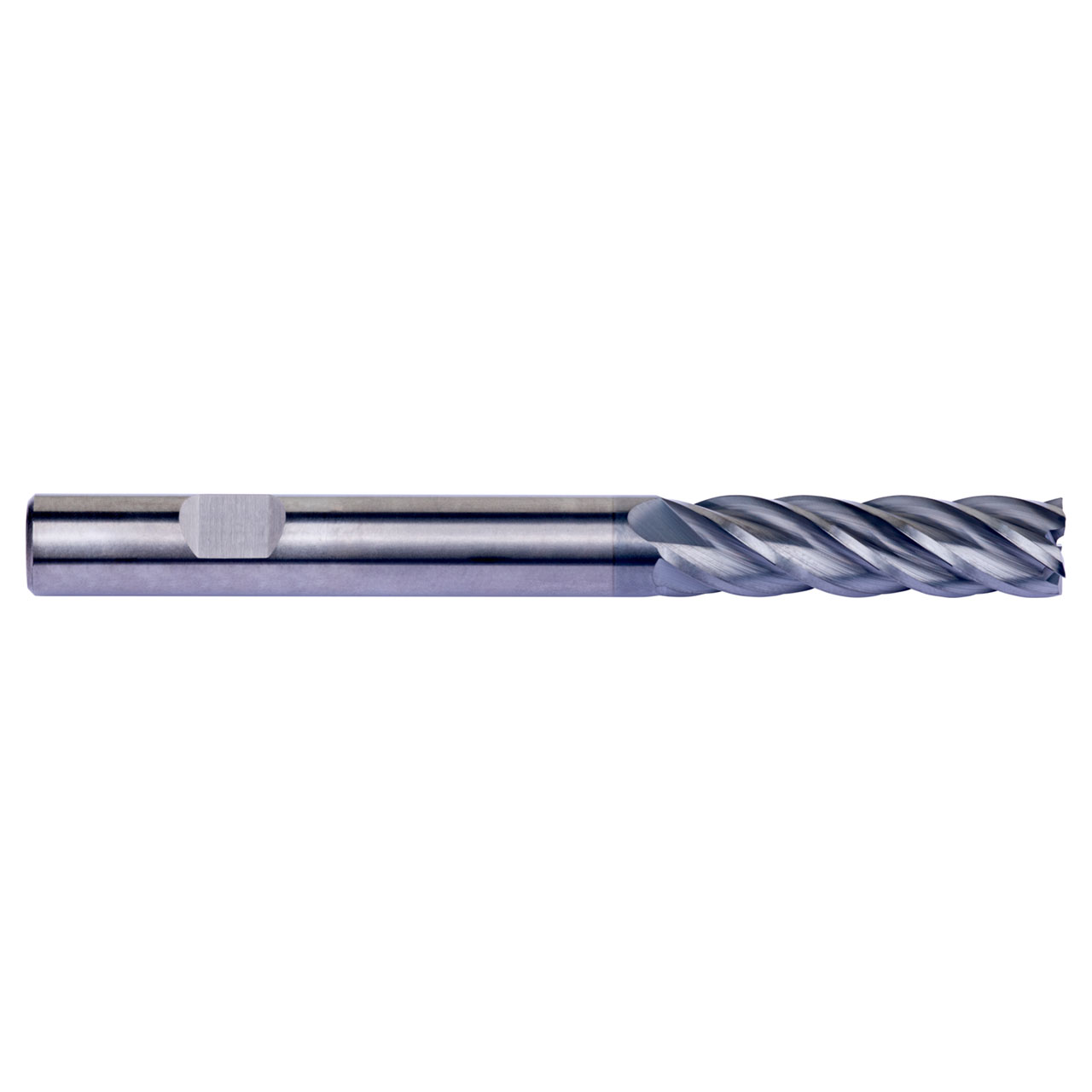

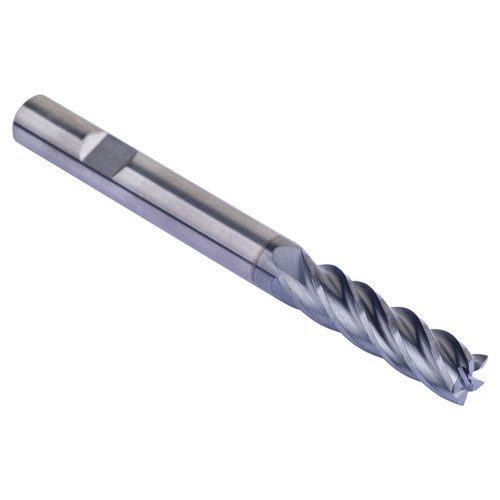

S772HB 5-flute milling cutters from Dormer come with positive geometry, promoting a smooth cutting action when machining stainless steels and super-alloys. The unequal helix reduces chatter and vibrations for better surface finish and improved tool life, whilst the 5-flute design also helps reduce vibration at higher fed rates. S772HB milling cutters come with a corner radius to reduce chipping and improve tool life, and have an aluminium chromium nitride coating to reduce friction and providing excellent wear resistance to increase tool life.
| Max Depth of Cut (mm) | 65mm |
| Connection Diameter (Inch) | 0.7874" |
| Cutting Diameter (Inch) | 0.7874" |
| Overall Length (Inch) | 4.9213" |
| Material Code | HM |
| Radial Rake Angle | 10 |
| No of Flute | 5 |
| Corner Radius (mm) | 0.3mm |
| Coating | AlCrN |
| Surface Color | Black-Deep Purple |
| Country of origin | Malaysia |
