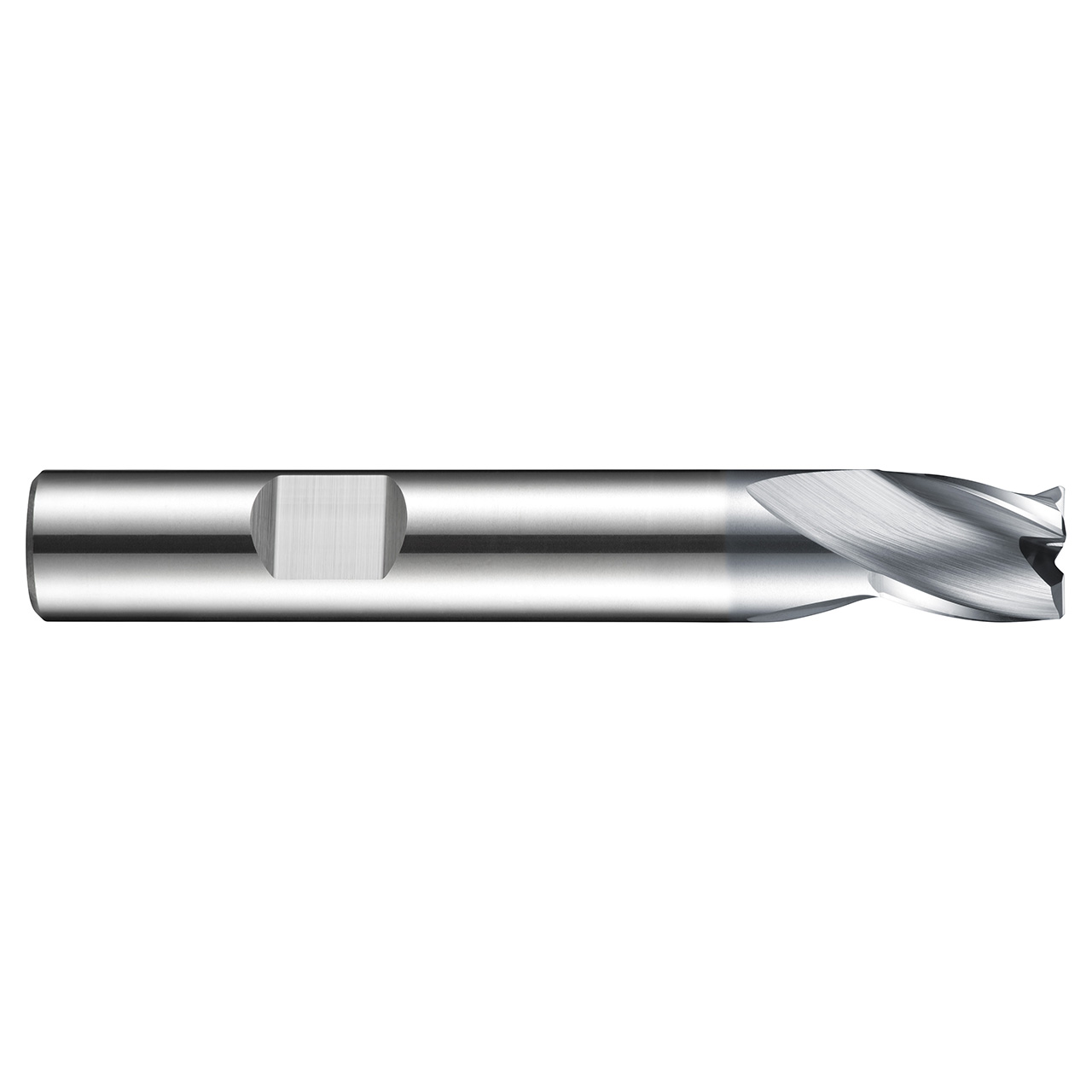

Dormer S803HB3.0 | 0.1181" Diameter x 1.9685" OAL 3 Flute AlCrN Coated Slot Drill

$41.34
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
10114436
Weight:
0.69 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Dormer's S803HB 3-flute milling cutters have a special Alcrona top for improved performance when milling difficult to machine materials. They have a short length flute for extra rigidity for milling shallow slots and, with an accurate diameter, are capable of milling standard keyway slots to P9 tolerance. Manufactured from premium carbide, S803HB 2-flute cutters will give you great performance with longer tool life and are very versatile, being suitable for plunging ramping and profile milling in steels, stainless steels, non-ferrous materials and cast iron.


Product Specifications
Max Depth of Cut (mm)4mm
Connection Diameter (Inch)0.2362"
Cutting Diameter (Inch)0.1181"
Overall Length (Inch)1.9685"
Material CodeHM
Radial Rake Angle9
No of Flute3
Flute Helix Angle28
Corner Chamfer Angle45
Corner Chamfer Width (mm)0.08mm
CoatingAlCrN
Surface ColorBlack-Deep Purple
