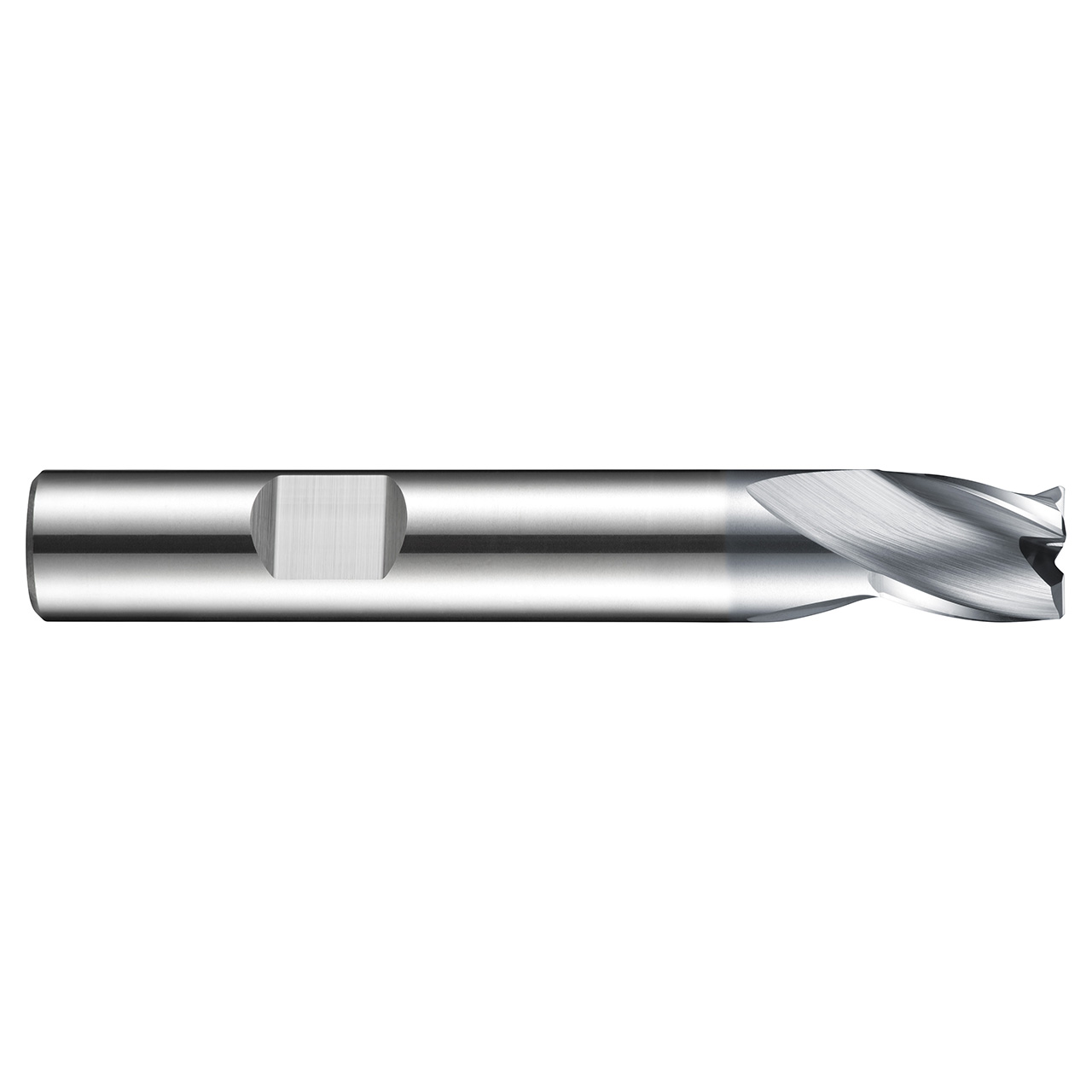

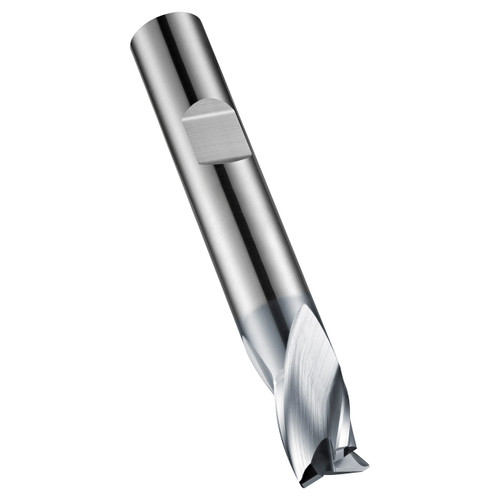

Dormer's S803HB 3-flute milling cutters have a special Alcrona top for improved performance when milling difficult to machine materials. They have a short length flute for extra rigidity for milling shallow slots and, with an accurate diameter, are capable of milling standard keyway slots to P9 tolerance. Manufactured from premium carbide, S803HB 2-flute cutters will give you great performance with longer tool life and are very versatile, being suitable for plunging ramping and profile milling in steels, stainless steels, non-ferrous materials and cast iron.
Max Depth of Cut (mm) | 6mm |
Connection Diameter (Inch) | 0.2362" |
Cutting Diameter (Inch) | 0.1969" |
Overall Length (Inch) | 2.126" |
Material Code | HM |
Radial Rake Angle | 9 |
No of Flute | 3 |
Flute Helix Angle | 28 |
Corner Chamfer Angle | 45 |
Corner Chamfer Width (mm) | 0.13mm |
Coating | AlCrN |
Surface Color | Black-Deep Purple |
