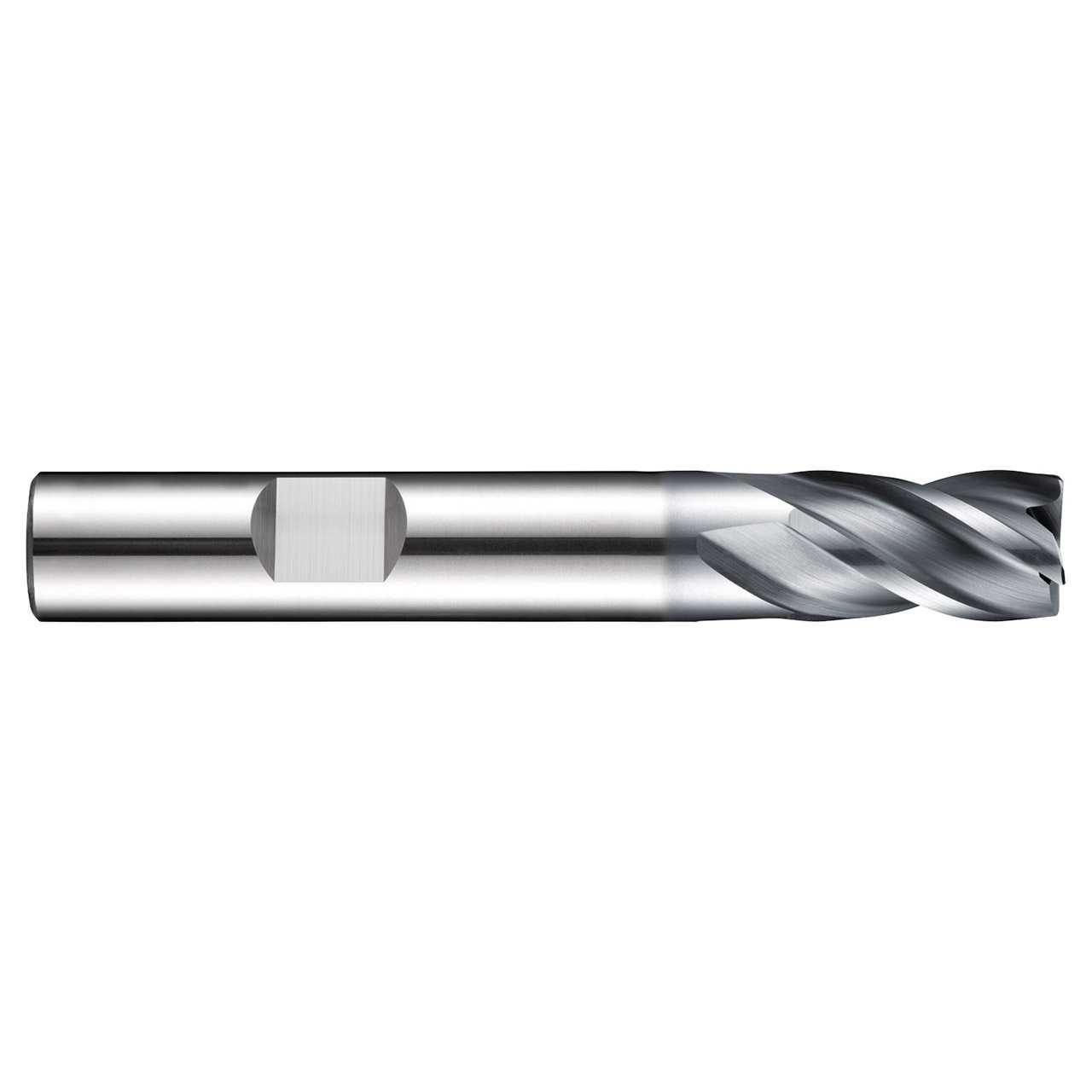

Dormer S804HB12.0 | 0.4724" Diameter x 2.874" OAL 4 Flute AlCrN Coated Square End Mill

$129.00
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
10114476
UPC:
7320760641781
Weight:
4.02 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

S804HB 4-flute milling cutters can be used for both slotting and profile milling, whilst the short flute design provides increased rigidity for shallow profile milling applications. The cutters are manufactured from premium carbide and have a special Alcrona coating which, together, extend the life of the tool and give superior performance, especially when milling materials which are difficult to machine. With a very versatile range of uses and suitable materials, the S804HB 4-flute milling cutter can be used for plunging, ramping and profile milling and is capable of machining steels, stainless steels, non-ferrous materials and cast iron.


Product Specifications
Max Depth of Cut (mm)16mm
Connection Diameter (Inch)0.4724"
Cutting Diameter (Inch)0.4724"
Overall Length (Inch)2.874"
Material CodeHM
Radial Rake Angle9
No of Flute4
Flute Helix Angle34
Corner Chamfer Angle45
Corner Chamfer Width (mm)0.2mm
CoatingAlCrN
Surface ColorBlack-Deep Purple
