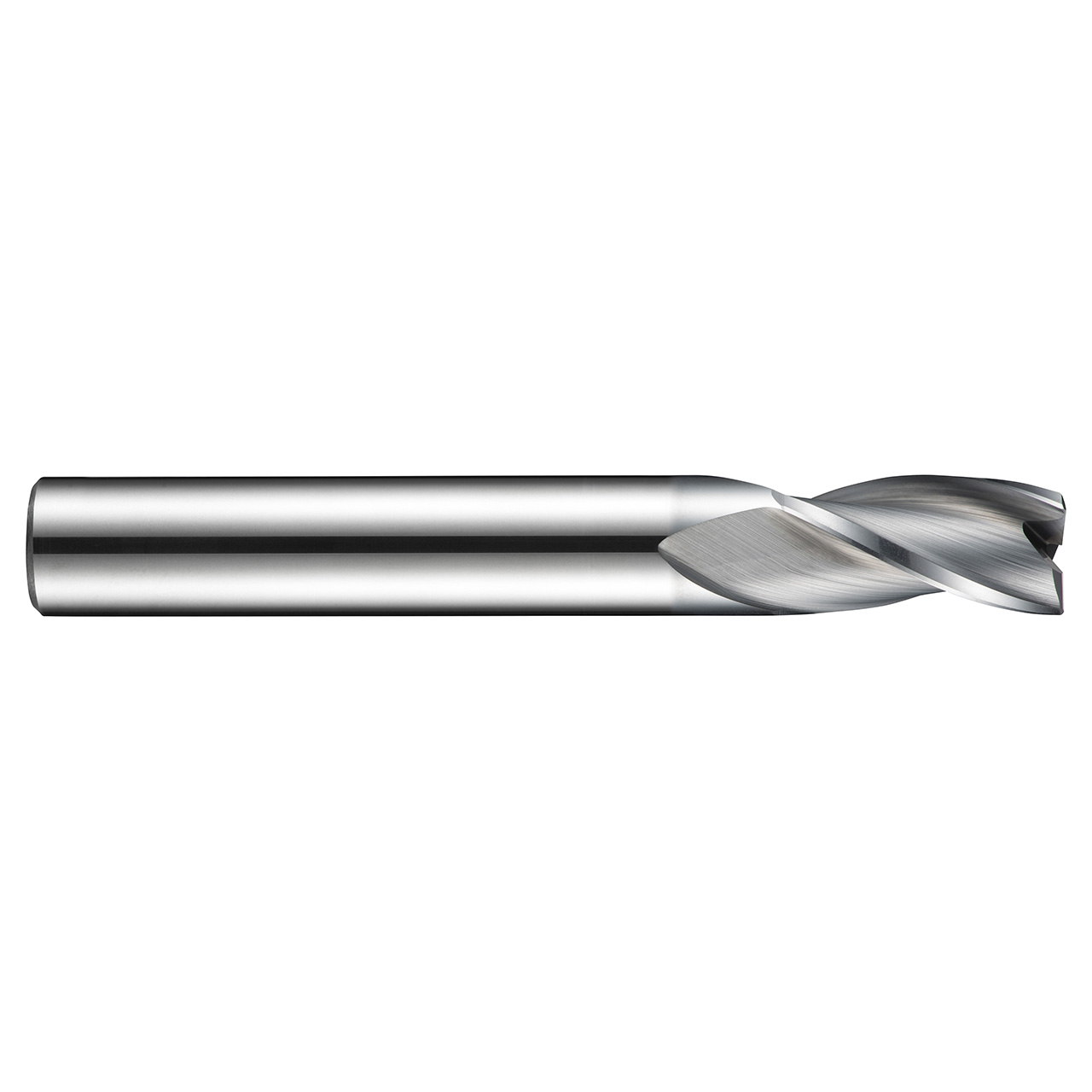

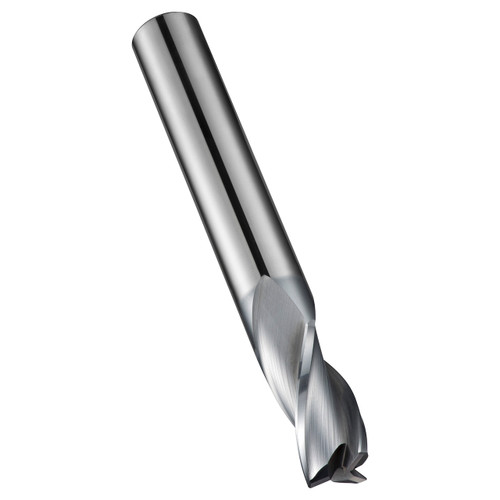

One of Dormer's range of solid carbide drills, the S813HA 3-flute cutter has an accurate diameter capable of milling keyway slots to a P9 tolerance, whilst the medium length flute gives you great rigidity for the operation. The premium carbide used in manufacture will give superior performance and longer tool life. This is further improved thanks to the special Alcrona coating, which also adds to the performance when milling difficult to machine materials. With versatility in mind, S813HA 3-flute slot drills can be used for plunging, ramping and profile milling in steels, stainless steels, cast iron and non-ferrous materials.
| Max Depth of Cut (mm) | 22mm |
| Connection Diameter (Inch) | 0.4724" |
| Cutting Diameter (Inch) | 0.4724" |
| Overall Length (Inch) | 3.2677" |
| Material Code | HM |
| Radial Rake Angle | 9 |
| No of Flute | 3 |
| Flute Helix Angle | 28 |
| Corner Chamfer Angle | 45 |
| Corner Chamfer Width (mm) | 0.2mm |
| Coating | AlCrN |
| Surface Color | Black-Deep Purple |
| Country of origin | Italy |
