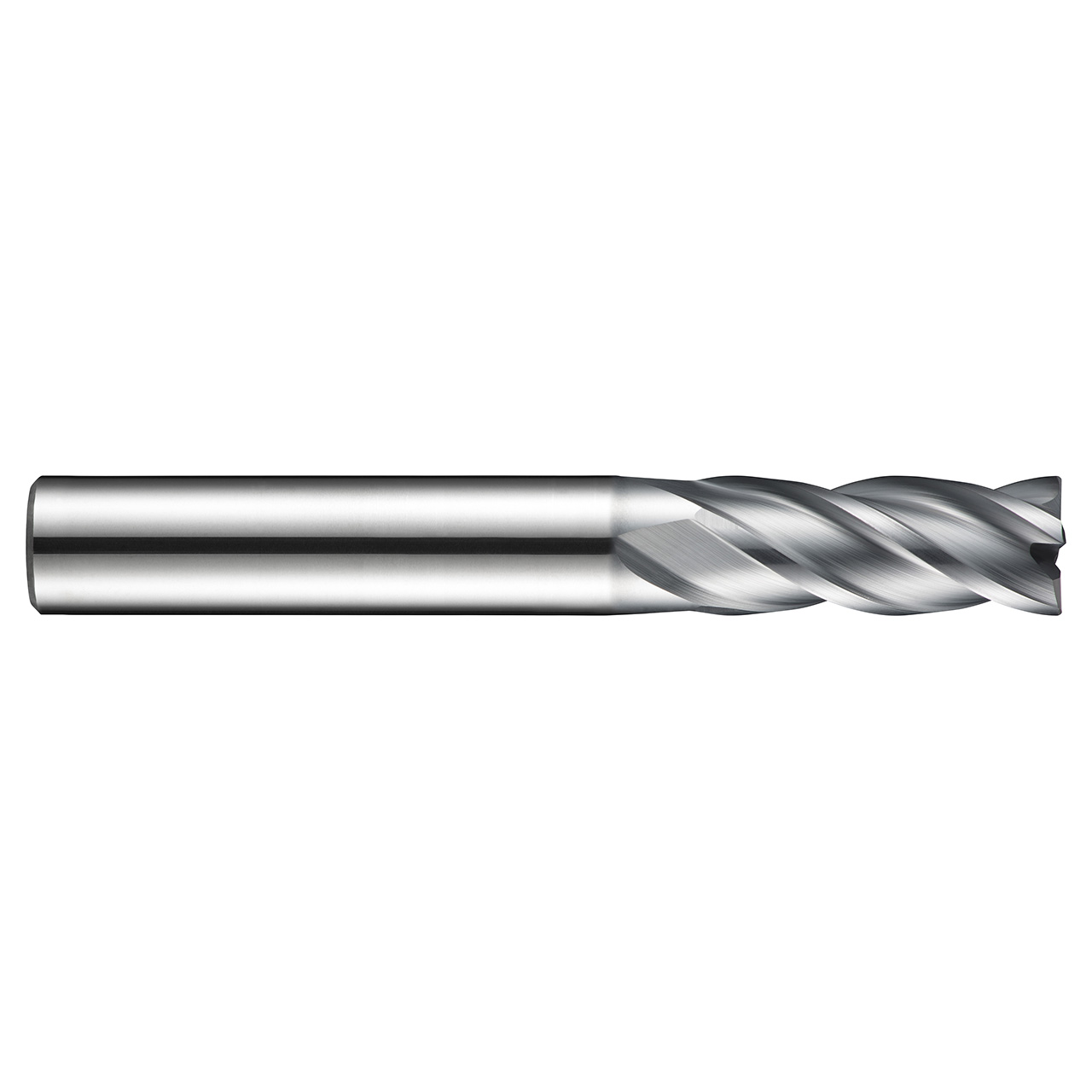

Dormer S814HA16.0 | 0.6299" Diameter x 3.622" OAL 4 Flute AlCrN Coated Square End Mill

$207.00
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
10114556
Weight:
8.29 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

S814HA 4-flute milling cutters are manufactured from premium carbide for superior performance and extended tool life. The medium length flute gives good rigidity for general purpose profile milling applications, whilst the cutters are of a strong design and can be used for both slotting and profile milling. The Alcrona coating makes the tools perfect for milling materials which are difficult to machine and further improve tool life. S814HA 4-flute end mills are very versatile tools and can be used for plunging, ramping and profile milling in steels, stainless steels, non-ferrous material and cast iron.


Product Specifications
Max Depth of Cut (mm)32mm
Connection Diameter (Inch)0.6299"
Cutting Diameter (Inch)0.6299"
Overall Length (Inch)3.622"
Material CodeHM
Radial Rake Angle9
No of Flute4
Flute Helix Angle34
Corner Chamfer Angle45
Corner Chamfer Width (mm)0.2mm
CoatingAlCrN
Surface ColorBlack-Deep Purple
