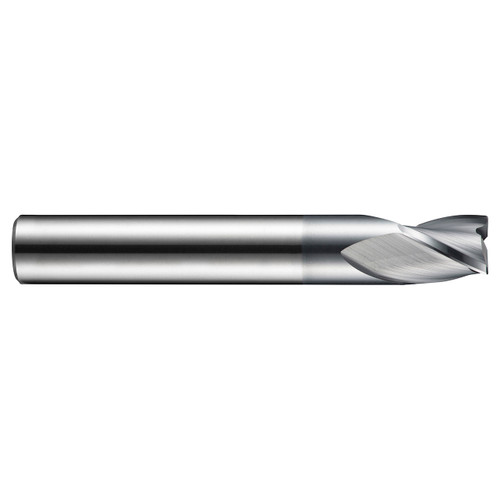

Dormer S82314.0 | 0.5512" Diameter x 3.2677" OAL 3 Flute AlCrN Coated Slot Drill

$150.60
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25141419
Weight:
5.54 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

S823 3-flute milling cutters from Dormer van be used for plunging, ramping and profile milling in steels, stainless steels, cast iron and non-ferrous material. Manufactured from premium carbide for great performance and long tool life, the tools have a special Alcrona coating for even longer tool life and improved performance when milling difficult to machine materials. The high rigidity from the longer length flute design makes S823 3-flute slot drills great for milling standard slots whilst the accurate diameter means standard keyway slots can be milled to P9 tolerance.


Product Specifications
Max Depth of Cut (mm)30mm
Connection Diameter (Inch)0.5512"
Cutting Diameter (Inch)0.5512"
Overall Length (Inch)3.2677"
Material CodeHM
Radial Rake Angle9
No of Flute3
Flute Helix Angle28
Corner Chamfer Angle45
Corner Chamfer Width (mm)0.2mm
CoatingAlCrN
Surface ColorBlack-Deep Purple
