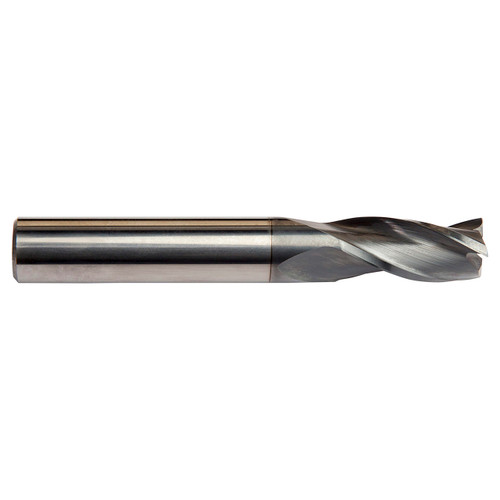

S823 3-flute milling cutters from Dormer van be used for plunging, ramping and profile milling in steels, stainless steels, cast iron and non-ferrous material. Manufactured from premium carbide for great performance and long tool life, the tools have a special Alcrona coating for even longer tool life and improved performance when milling difficult to machine materials. The high rigidity from the longer length flute design makes S823 3-flute slot drills great for milling standard slots whilst the accurate diameter means standard keyway slots can be milled to P9 tolerance.
| Max Depth of Cut (mm) | 38mm |
| Connection Diameter (Inch) | 0.7874" |
| Cutting Diameter (Inch) | 0.7874" |
| Overall Length (Inch) | 4.0945" |
| Material Code | HM |
| Radial Rake Angle | 9 |
| No of Flute | 3 |
| Flute Helix Angle | 28 |
| Corner Chamfer Angle | 45 |
| Corner Chamfer Width (mm) | 0.3mm |
| Coating | AlCrN |
| Surface Color | Black-Deep Purple |
| Country of origin | Italy |
