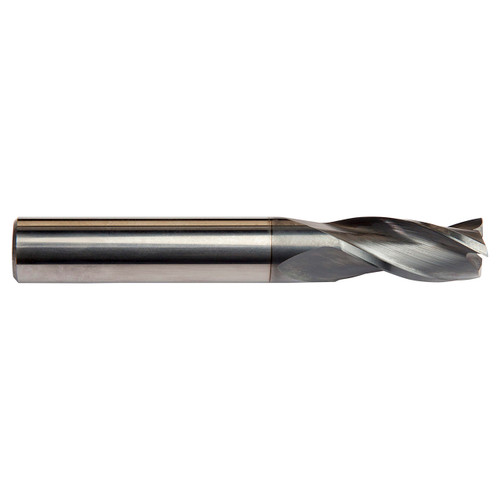

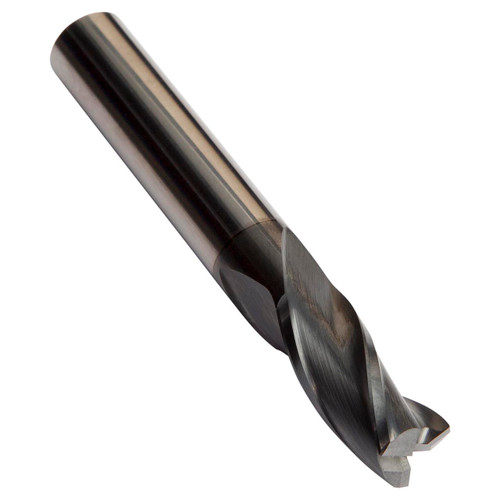

S823 3-flute milling cutters from Dormer van be used for plunging, ramping and profile milling in steels, stainless steels, cast iron and non-ferrous material. Manufactured from premium carbide for great performance and long tool life, the tools have a special Alcrona coating for even longer tool life and improved performance when milling difficult to machine materials. The high rigidity from the longer length flute design makes S823 3-flute slot drills great for milling standard slots whilst the accurate diameter means standard keyway slots can be milled to P9 tolerance.
Max Depth of Cut (mm) | 12mm |
Connection Diameter (Inch) | 0.2362" |
Cutting Diameter (Inch) | 0.1181" |
Overall Length (Inch) | 2.2441" |
Material Code | HM |
Radial Rake Angle | 9 |
No of Flute | 3 |
Flute Helix Angle | 28 |
Corner Chamfer Angle | 45 |
Corner Chamfer Width (mm) | 0.08mm |
Coating | AlCrN |
Surface Color | Black-Deep Purple |
