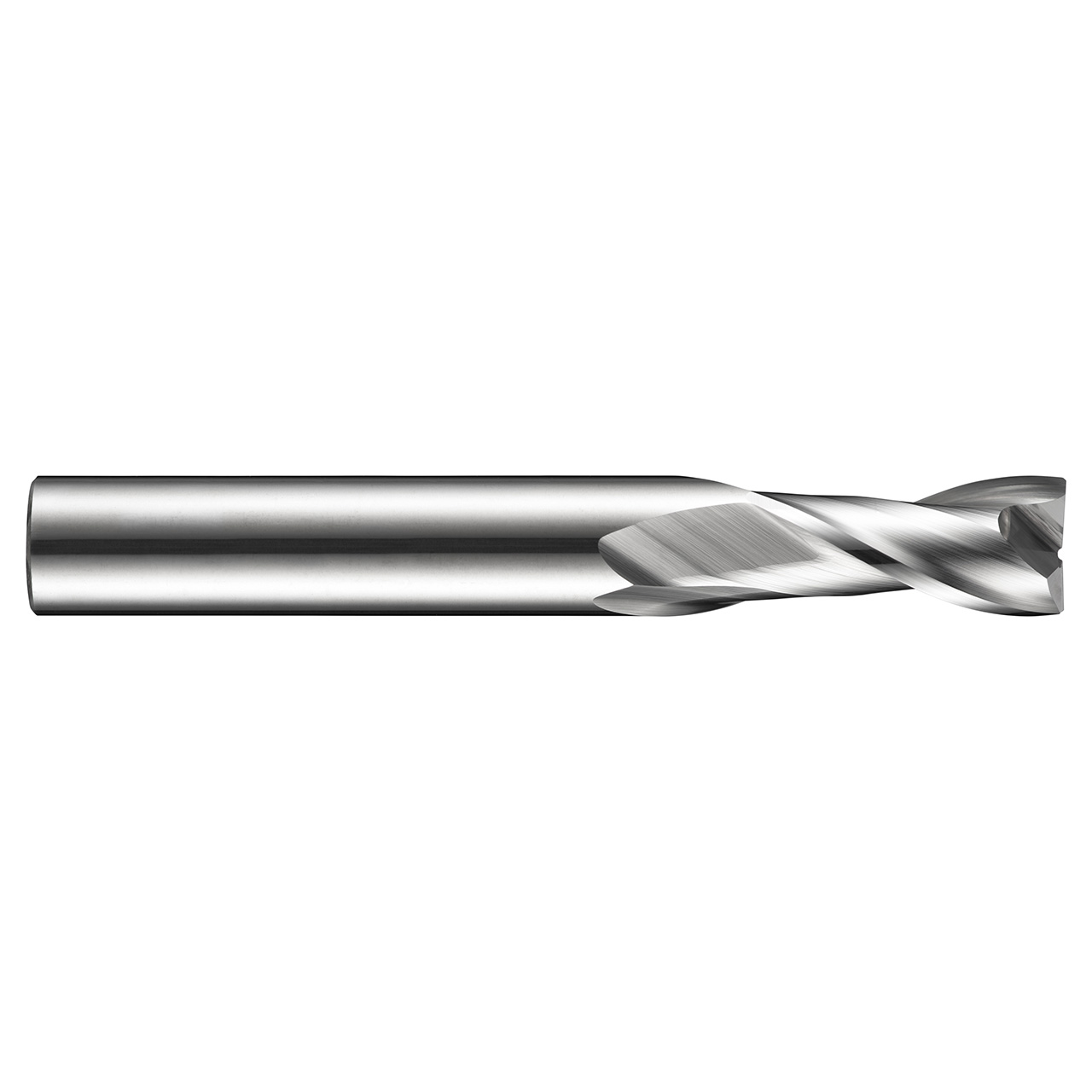

Dormer S9028.0 | 0.315" Diameter x 2.4803" OAL 2 Flute Bright Coated Square End Mill

$36.78
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25139711
Weight:
1.56 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Dormer's S902 2-flute milling cutters have a medium length flute design making them very rigid and great for milling standard slots. The tools are manufactured from premium carbide for great performance and longer tool life and the bright finish prevents workpiece material from sticking to the cutting edges of the tool so you get a cleaner, more accurate result. S902 2-flute slot drills are very versatile, being suitable for plunging, ramping and profile milling in steels, cast iron and stainless steels, and are a very economical range for general milling of slots on most types of machine.


Product Specifications
Max Depth of Cut (mm)19mm
Connection Diameter (Inch)0.315"
Cutting Diameter (Inch)0.315"
Overall Length (Inch)2.4803"
Material CodeHM
Radial Rake Angle12
No of Flute2
Flute Helix Angle30
Corner Chamfer Angle45
Corner Chamfer Width (mm)0.13mm
CoatingBright
Surface ColorBright Silver
