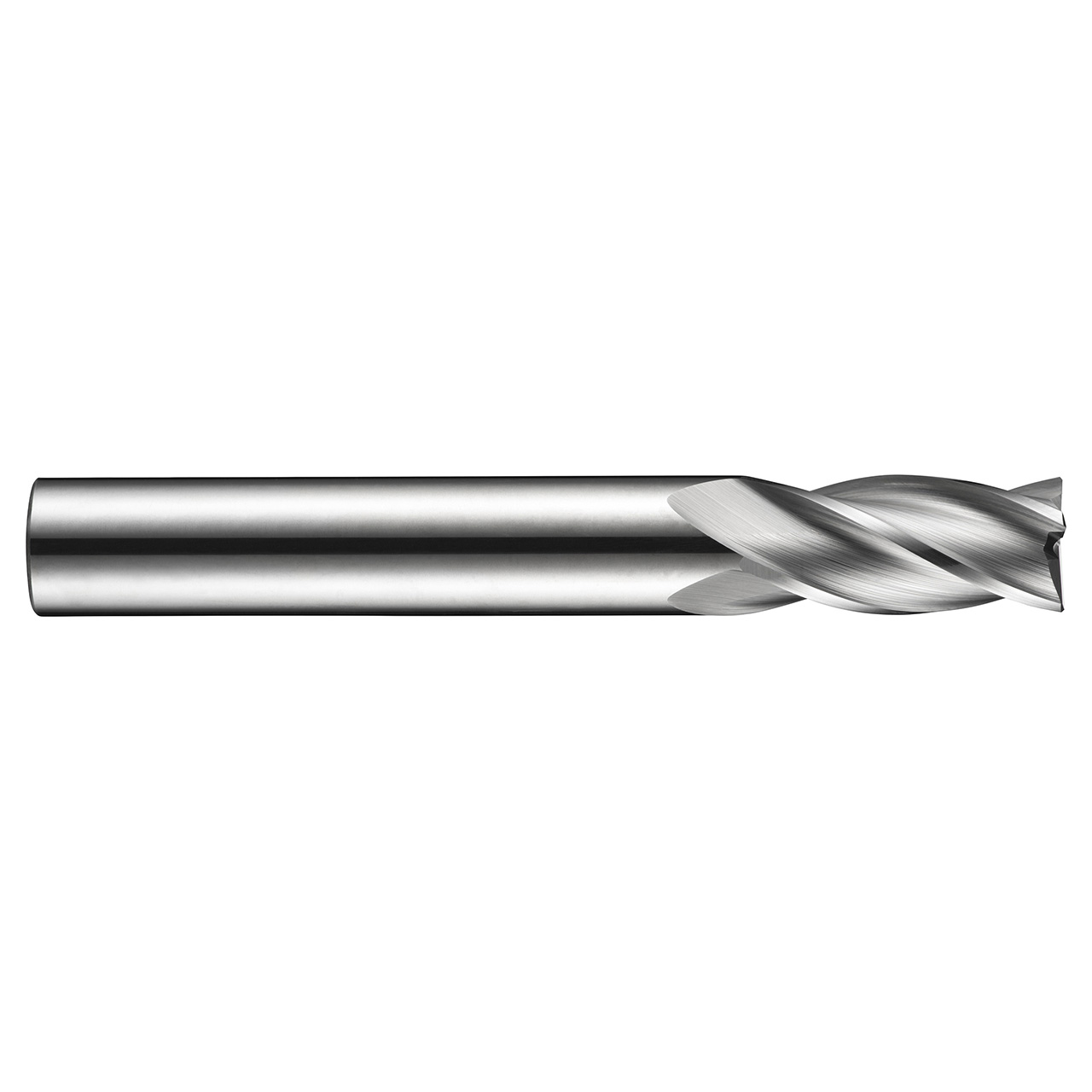

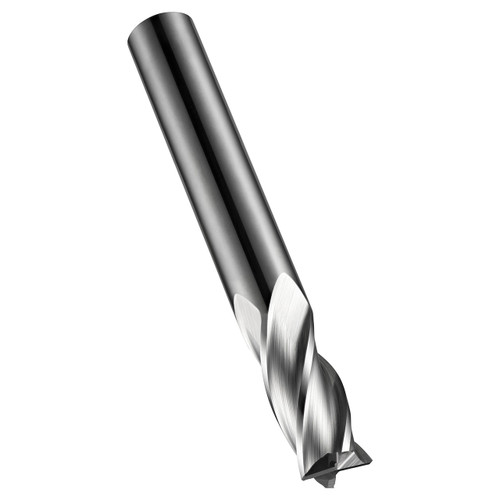

Dormer S90416.0 | 0.6299" Diameter x 3.622" OAL 4 Flute Bright Coated Square End Mill

$123.60
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25139730
Weight:
8.29 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

S904 4-flute milling cutters from Dormer's extensive range are manufactured from premium carbide for extended tool life and superior performance. They are an economical range of cutters for general milling of slots on most types of machines and have a sturdy medium length flute design, good for standard profile milling. The tools have a bright finish which will ensure a clean and accurate result by preventing workpiece material from sticking to the cutting edges of the tool. S904 4-flute end mills can be used for ramping, plunging and profile milling in a range of materials, including cast iron, stainless steels and steels.


Product Specifications
Max Depth of Cut (mm)32mm
Connection Diameter (Inch)0.6299"
Cutting Diameter (Inch)0.6299"
Overall Length (Inch)3.622"
Material CodeHM
Radial Rake Angle12
No of Flute4
Flute Helix Angle30
Corner Chamfer Angle45
Corner Chamfer Width (mm)0.2mm
CoatingBright
Surface ColorBright Silver
