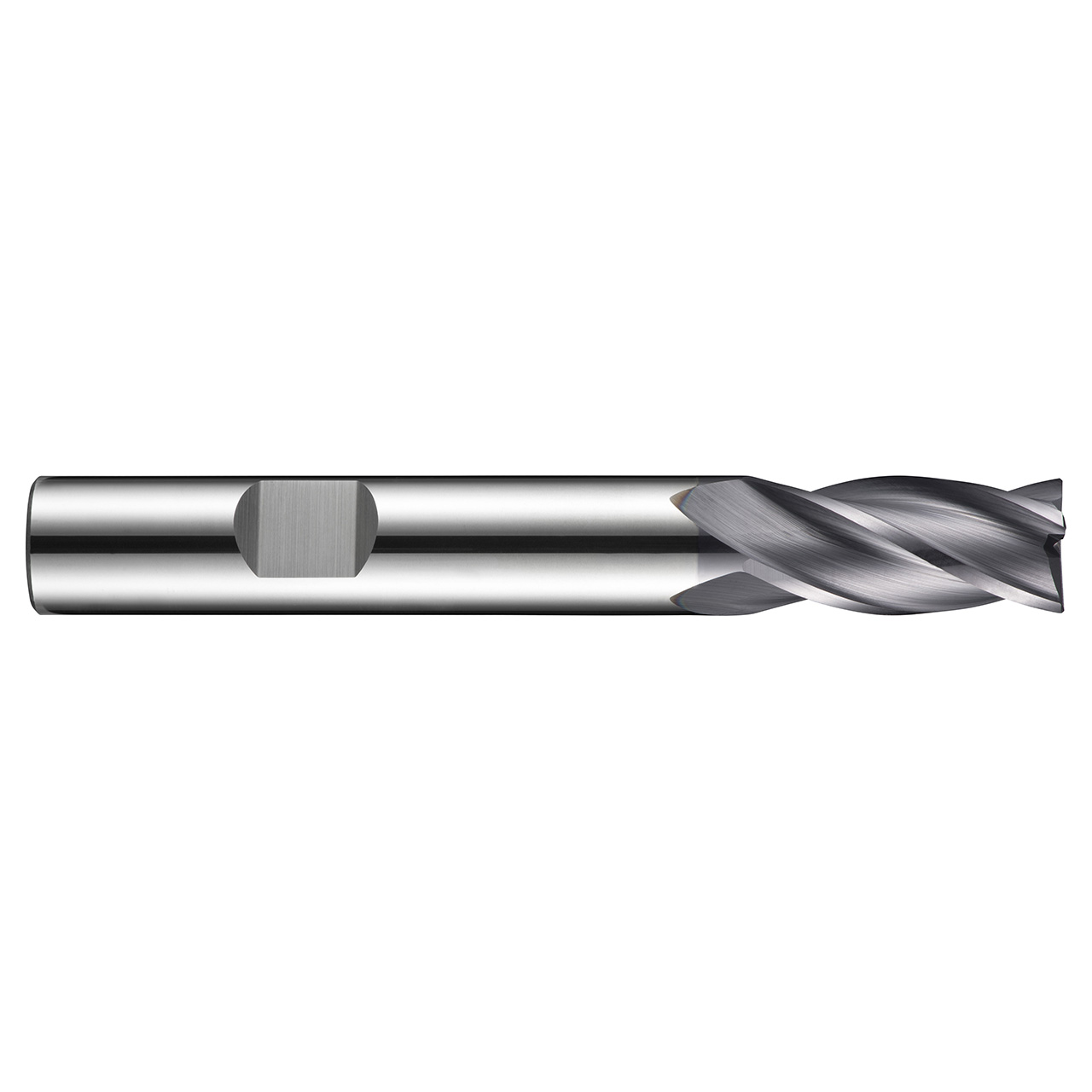

Dormer S9447.0 | 0.2756" Diameter x 2.4803" OAL 4 Flute TiAlN Coated Square End Mill

$56.88
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25139315
Weight:
1.52 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

S944 4-flute milling cutters are manufactured from premium carbide for superior performance and longer tool life which is further extended by the titanium aluminium nitride coating, which also improves performance when milling difficult to machine materials. The tools are very versatile and can be used to machine a wide range of materials including steels, stainless steels and cast iron, and are suitable for plunging, ramping and profile milling. The rigid, medium length flute is great for standard profile milling and S944 4-flute cutters are a great economical range for general milling of slots on most types of machine.


Product Specifications
Max Depth of Cut (mm)19mm
Connection Diameter (Inch)0.315"
Cutting Diameter (Inch)0.2756"
Overall Length (Inch)2.4803"
Material CodeHM
Radial Rake Angle12
No of Flute4
Flute Helix Angle30
Corner Chamfer Angle45
Corner Chamfer Width (mm)0.13mm
CoatingTiAlN
Surface ColorBlack-Deep Purple
