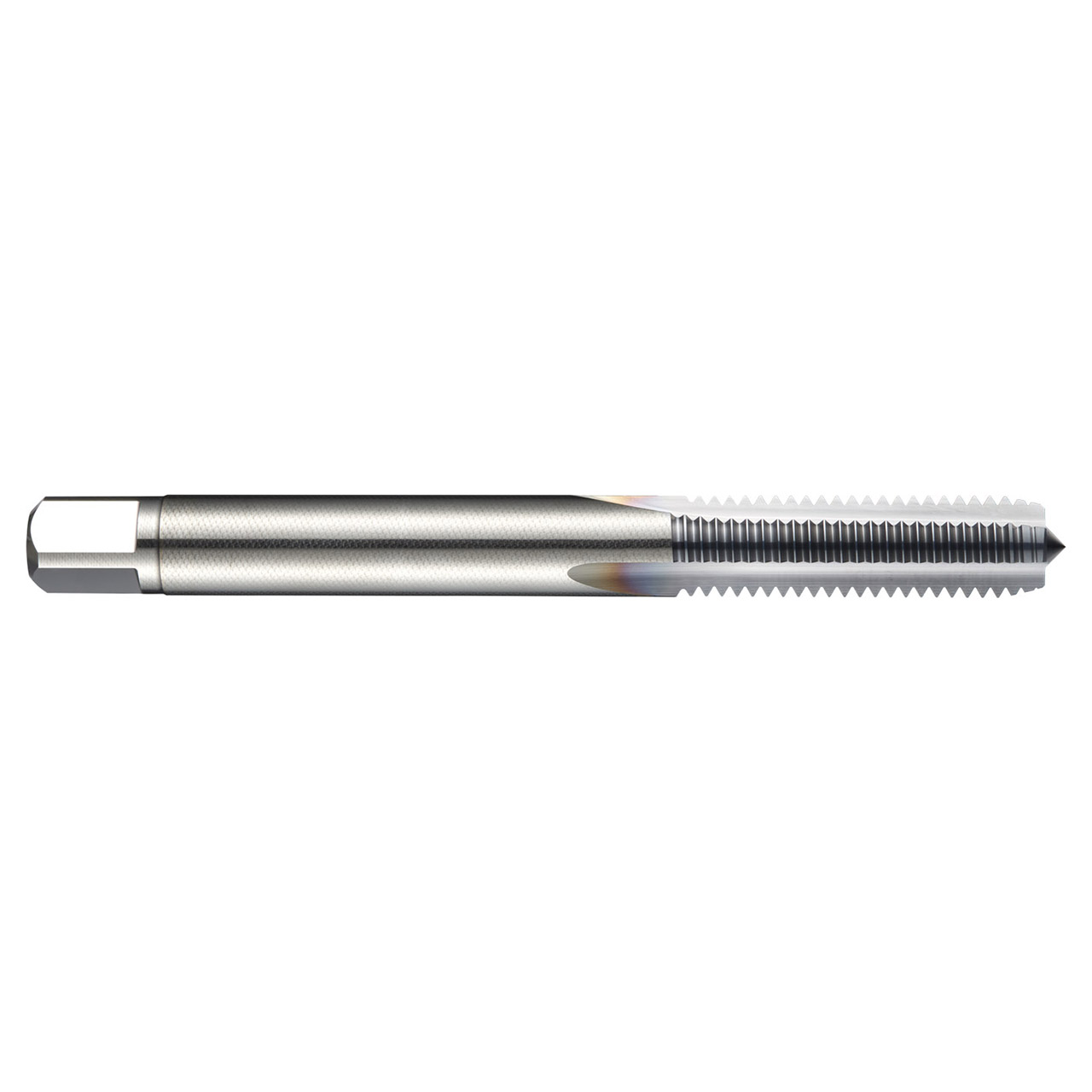

Dormer 7182354 | M5x0.80mm Thread Size x 6.00mm Shank x 16.00mm Length x 70.00mm OAL M 6H 3 Flute TiCN Coated HM T200 Straight Flute Tap

$219.00 $215.72
(You save $3.28)
Brand:
Dormer
Thread Limit:
6H
Overall Length (Decimal Inch):
2.7559"
Overall Length (mm):
70.00mm
Number of Flutes:
3
Material:
HM
Finish/Coating:
TiCN
Thread Direction:
Right Hand
Through Coolant:
No
Thread Standard:
DIN 371 LE 10, DIN 376 GE 12
interval quantity:
1
SKU:
15026827
UPC:
7320760706275
Weight:
0.06 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Straight flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M5 with 0.80mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0mm shank and 4.9mm square drive, solid carbide with TiCN coating for 2xD through or blind hole threading in chilled or hardened steel <55HRC.


Product Specifications
Connection Diameter (Inch)0.2362"
Overall Length (Inch)2.7559"
Clamping Width (mm)4.9mm
No of Flutes3
Thread Pitch (mm)0.8mm
Clamping Length8
Thread Diameter Size5
Threading Length (mm)16mm
Material CodeHM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingTiCN
Tap Chamfer StyleC 2-3
Surface ColorPurple
Thread FormM-Metric coarse
Country of originGermany
