Product Specifications
| Manufacturer Part Number | 10673S |
| Length of Cut Minimum (Inch) | 11/16" |
| Length of Cut Minimum (mm) | 17.50mm |
| Length of Cut Maximum (Inch) | 4" |
| Length of Cut Maximum (mm) | 102.00mm |
| Cutting Width (Inch) | 0.4733" |
| Minimum Hole Size (Inch) | 1.5350" |
| Minimum Hole Size (mm) | 0.6240" |
| Body Width (Inch) | 0.6240" |
| Body Width (mm) | 15.85mm |
| Overall Length (Inch) | 48" |
| Overall Length (mm) | 1219mm |
| Body Height (Inch) | 1.341" |
| Body Height (mm) | 34.0mm |
| Shank Length (Inch) | 11-7/8" |
| Shank Length (mm) | 302mm |
| Functional Height (Inch) | 0.181" |
| Thread Size | 3/4"-10 |

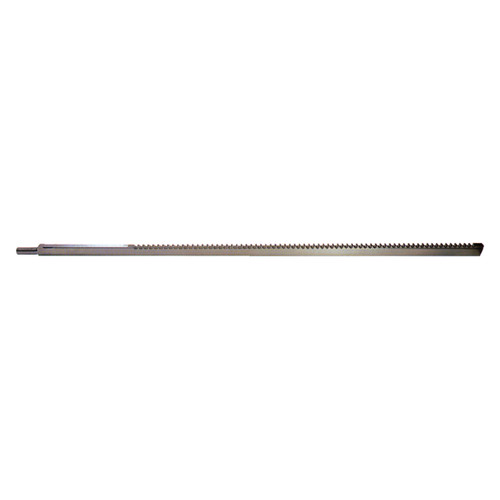

| Product Type | Pull-Type Keyway Broach |
