Features:

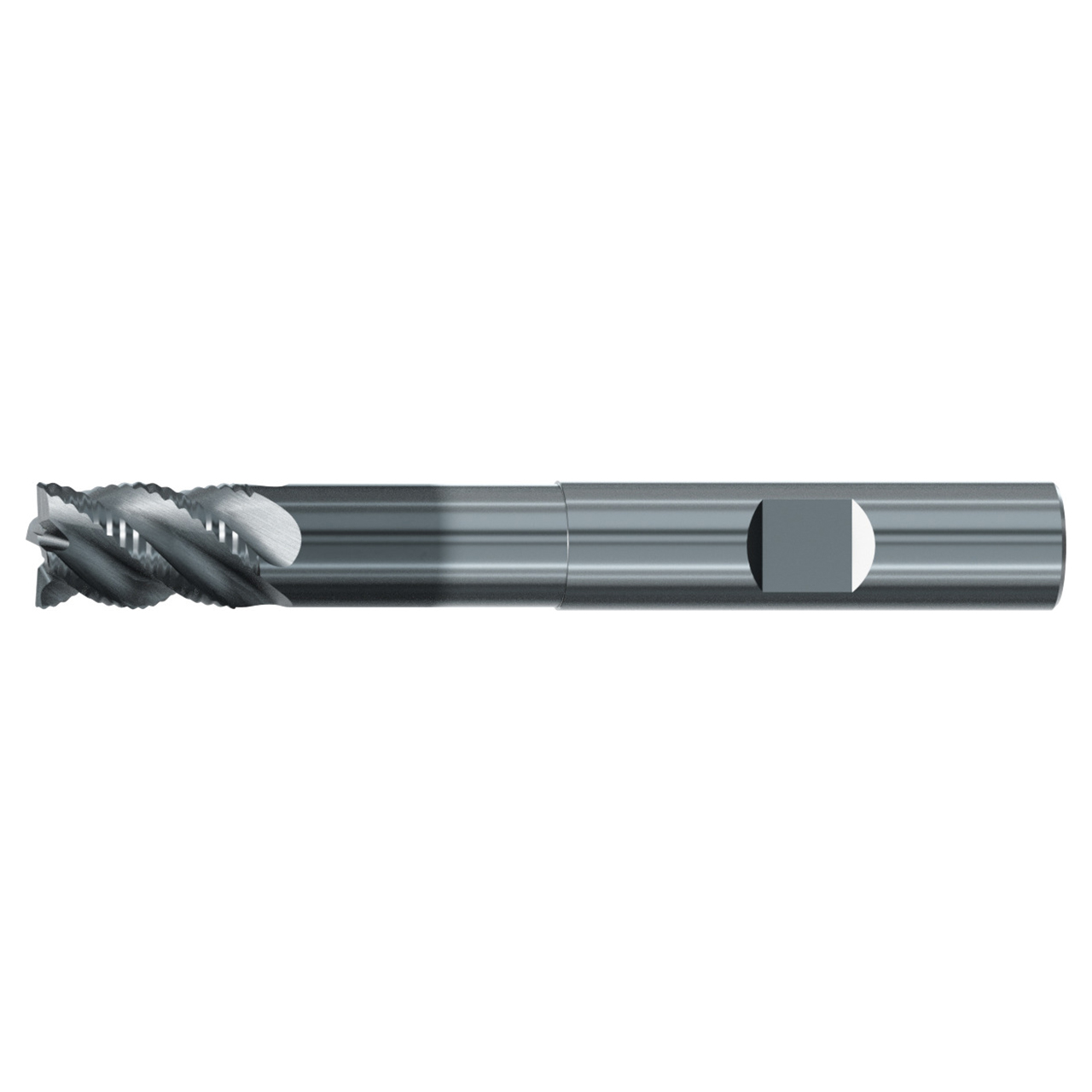

- Multi-Cut carbide end mill for high-performance roughing in many materials
- Very low cutting forces and vibrations due to variable spacing and NR rougher cutting profile
- Excellent for roughing under unstable conditions
- Optimally suited for high metal removal rates
Product Specifications
| Manufacturer Part Number | 2875L.0250 |
| Cutting Diameter (Inch) | 1/4" |
| Cutting Diameter (Decimal Inch) | 0.250" |
| Overall Length (Inch) | 3" |
| Flute-Length (Inch) | 1" |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | Weldon Flat - HB |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | Extra Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 4 |
| Flute Helix Angle (Degree) | 45 Degree |
| Cutting Edge Material | Carbide |
| Coating | ALCR |
| Tool Type | Square End |
| End Mill - End Style | Square & Corner Radius End Mills |
| End Shape | Square |
| Product Type | Roughing & Finishing End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Mill Diameter (Inch):
1/4"
Mill Diameter (Decimal Inch):
0.2500"
Mill Diameter (mm):
6.35mm
Number of Flutes:
4
Finish/Coating:
ALCR
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (Inch):
1/4"
Shank Diameter (mm):
6.35mm
Overall Length (Decimal Inch):
3.0000"
Overall Length (Inch):
3"
Overall Length (mm):
76.20mm
