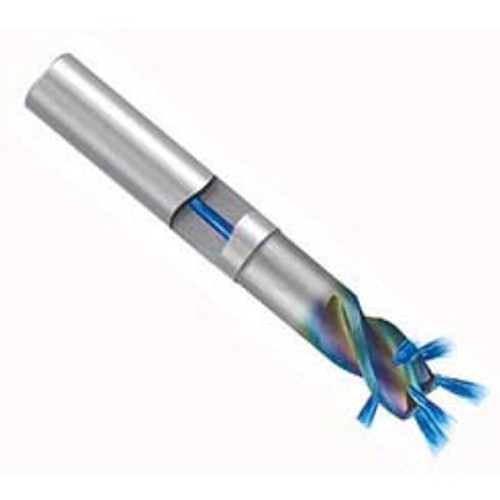

Features:
- Longer tool life with increased performance in aluminum milling applications
- Radial & Axial
Product Specifications
| End Style | Corner Radius |
| End Type | Finisher |
| Size | 12 mm |
| Applicable Material | Aluminum Alloys |
| Type | Corner Radius |
| Length Group | Regular |
| Features: | Special geometry for high volume machining of aluminum. Coolant fed both axial & radial exits. Finishing cutting tooth profile |
| Coating | CrN |
| Material | Carbide |
| Number of Flutes | 4 |
| Helix Angle (Degrees) | 40 Degree |
| Shank Diameter (mm) | 12 mm |
| Shank Tolerance | h5 |
| Shank Style | HB |
| Overall Length (mm) | 83 mm |
| Flute Length (mm) | 12 mm |
| Flute Direction | Right Hand |
| Corner Radius | 2 mm |
| Application | Finisher |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Cutting Diameter (Decimal Inch):
0.4724"
Cutting Diameter (mm):
12.00mm
Shank Diameter (mm):
12.00mm
Corner Radius (mm):
2.00mm
Cutting Edge Material:
Carbide
Flute Length (mm):
12.00mm
Number of Flutes:
4
Flute Direction:
Right Hand
Finish/Coating:
CrN
Tool Type:
Corner Radius
Application:
Finishing
Overall Length (mm):
83.00mm
