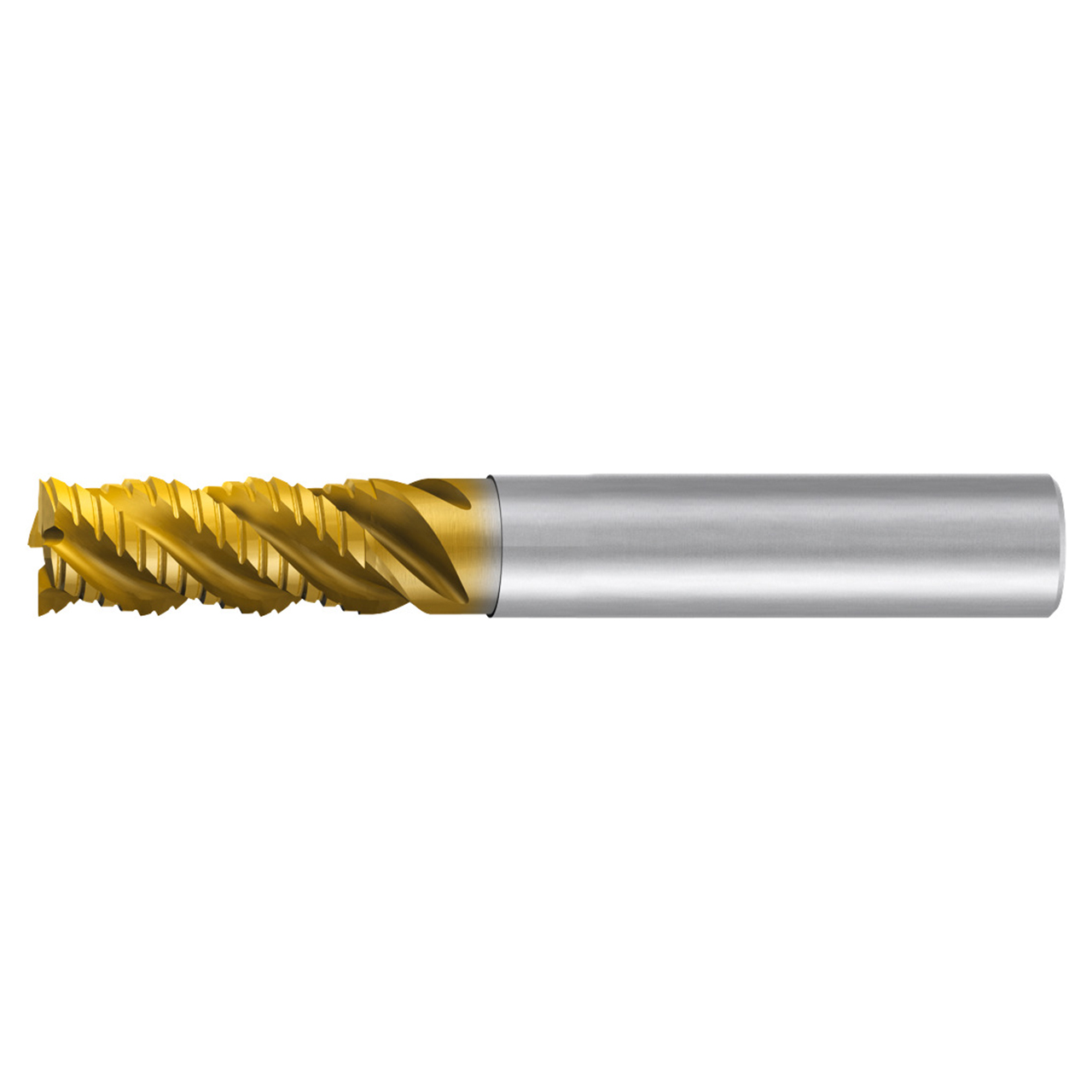

Features:
- TiNox-Cut carbide end mill for roughing operations in materials that are difficult to machine
- Suitable for high performance roughing operations due to semi-finishing profile
- Variable spacing reduces vibrations and improves tool life
- Higher tool life and metal removal rates in nickel alloys
Product Specifications
| Manufacturer Part Number | 2958T.0625 |
| Cutting Diameter (Inch) | 5/8" |
| Cutting Diameter (Decimal Inch) | 0.625" |
| Overall Length (Inch) | 3-1/2" |
| Flute-Length (Inch) | 1-1/4" |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | Cylindrical - HA |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | Standard Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 4 |
| Flute Helix Angle (Degree) | 45 Degree |
| Cutting Edge Material | Carbide |
| Coating | TIN/TIALN |
| Tool Type | Square End |
| End Mill - End Style | Square & Corner Radius End Mills |
| End Shape | Square |
| Application | Rough / Finish |
| Product Type | Roughing End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Mill Diameter (Inch):
5/8"
Mill Diameter (Decimal Inch):
0.6250"
Mill Diameter (mm):
15.88mm
Number of Flutes:
4
Finish/Coating:
TIN/TIALN
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (Inch):
5/8"
Shank Diameter (mm):
15.88mm
Overall Length (Decimal Inch):
3.5000"
Overall Length (Inch):
3 1/2"
Overall Length (mm):
88.90mm
interval quantity:
1
