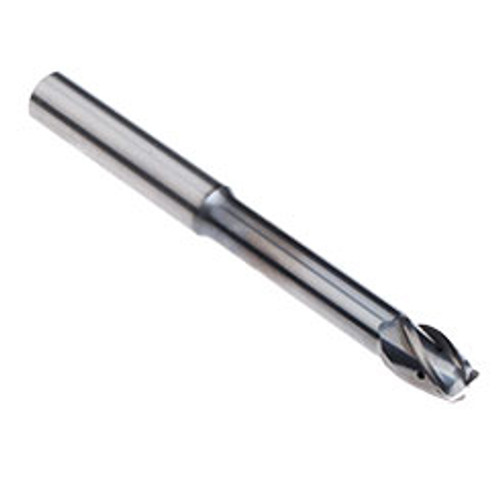

Emuge 3554LZ.10045A | 10 MM-End Mill -Oval ForM-R1.5/R45 -Coolant

$341.51 $221.98
(You save $119.53)
Brand:
Emuge
Cutting Diameter (Decimal Inch):
0.3937"
Cutting Diameter (mm):
10.00mm
Shank Diameter (mm):
10.00mm
Corner Radius (mm):
1.50mm
Cutting Edge Material:
Carbide
Neck Length (mm):
52.00mm
Flute Length (mm):
12.00mm
Number of Flutes:
4
Flute Direction:
Right Hand
Finish/Coating:
ALCR
Tool Type:
Oval Form Cutter
Application:
Finishing
Overall Length (mm):
95.00mm
interval quantity:
1
SKU:
25183275
UPC:
Weight:
0.19 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
3554LZ.10045A-C

Features:

  • Greatly reduces cycle time while improving surface quality
  • Radial

Product Specifications
End StyleCircle Segment Oval
End TypeFinisher
Size10 mm
Applicable MaterialSteel, Cast Iron, Aluminum, Titanium, Nickel Alloys
TypeOval Form Cutter
Length GroupRegular
Features:Circle Segment milling cutter for 5 axis machining. Oval form geometry
CoatingALCR
MaterialCarbide
Number of Flutes4
Helix Angle (Degrees)30 Degree
Shank Diameter (mm)10 mm
Shank Toleranceh6
Shank StyleHA
Overall Length (mm)95 mm
Flute Length (mm)12 mm
Flute DirectionRight Hand
Corner Radius1.5 mm
ApplicationFinisher
