Features:

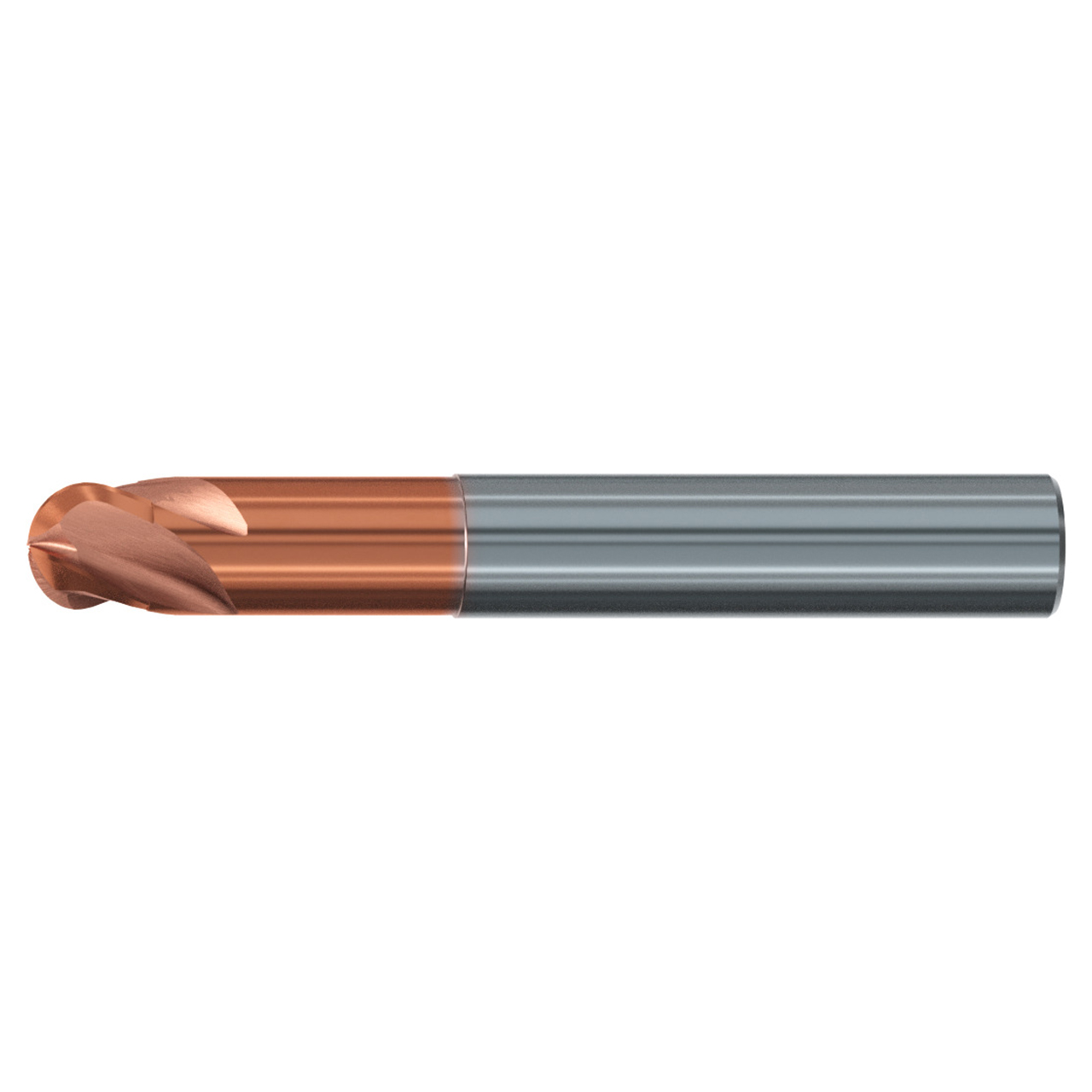

- TOP-Cut carbide ball nose end mill for roughing and finishing in almost all materials
- Unique tool geometry enable low-vibration machining and universal use in almost all materials and milling processes
- Patented chisel edge construction
- TIALN coated for heat and wear resistance
Product Specifications
| Manufacturer Part Number | 3823A.005 |
| Cutting Diameter (Decimal Inch) | 0.197" |
| Cutting Diameter (mm) | 5.00mm |
| Overall Length (mm) | 57.00mm |
| Flute Length (mm) | 5.00mm |
| Shank Tolerance | h5 |
| Tool Cylindrical - Shank Style | Cylindrical - HA |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | Stub Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 4 |
| Flute Helix Angle (Degree) | 30 Degree |
| Cutting Edge Material | Carbide |
| Coating | TIALN |
| Tool Type | Ball Nose |
| End Mill - End Style | Ballnose End Mills |
| End Shape | Ball |
| Application | Finishing |
| Product Type | Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Mill Diameter (Inch):
13/64"
Mill Diameter (Decimal Inch):
0.1969"
Mill Diameter (mm):
5.00mm
Number of Flutes:
4
Overall Length (Inch):
2-1/4"
Overall Length (Decimal Inch):
2.2440"
Overall Length (mm):
57.00mm
Shank Diameter (Inch):
15/64"
Shank Diameter (Decimal Inch):
0.2362"
Shank Diameter (mm):
6.00mm
Finish/Coating:
TiAlN
Helix Angle:
30 Degree
Flute Direction:
Right Hand
Application:
Finishing
