Features:

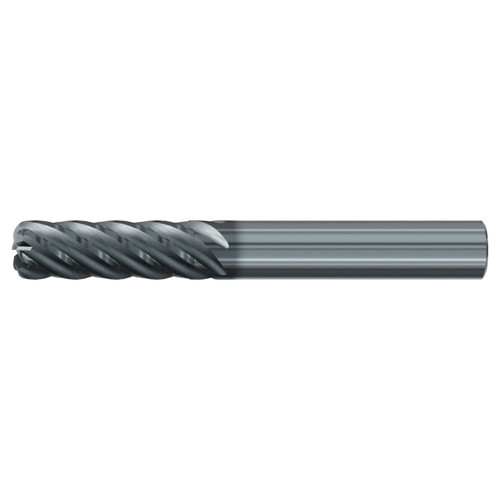

- TOP-Cut VAR carbide end mill with 6 flute design for roughing and finishing in almost all materials
- Variable pitch helix angle enable low-vibration machining and universal use in almost all materials and milling processes
- Suitable for trochoidal milling tool paths
- ALCR coating for additional heat and wear resistance
Product Specifications
| Manufacturer Part Number | 3943L.075060 |
| Cutting Diameter (Inch) | 3/4" |
| Cutting Diameter (Decimal Inch) | 0.750" |
| Corner Radius (Decimal Inch) | 0.060" |
| Overall Length (Inch) | 5" |
| Flute-Length (Inch) | 2-1/4" |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | Cylindrical - HA |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | Long Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 6 |
| Flute Helix Angle (Degree) | 35-38 Degree |
| Cutting Edge Material | Carbide |
| Coating | ALCR |
| Tool Type | Corner Radius |
| End Mill - End Style | Square & Corner Radius End Mills |
| End Shape | Corner Radius |
| Application | Finishing |
| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Mill Diameter (Inch):
3/4"
Mill Diameter (Decimal Inch):
0.7500"
Mill Diameter (mm):
19.05mm
Number of Flutes:
6
Corner Radius (Decimal Inch):
0.0600"
Corner Radius (mm):
1.52mm
Overall Length (Inch):
5"
Overall Length (Decimal Inch):
5.0000"
Overall Length (mm):
127.00mm
Finish/Coating:
ALCR
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Application:
Finishing
interval quantity:
1
