Features:

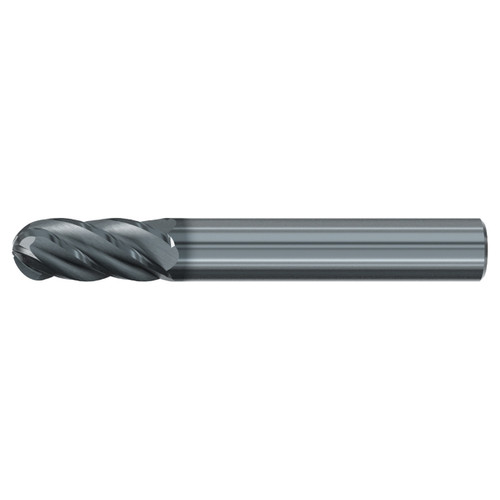

- TOP-Cut VAR carbide ball nose end mill with 5 flute design for roughing and finishing in almost all materials
- Variable helix geometry results in higher quality parts by decreasing chatter and harmonics
- Premium sub-micro grain carbide substrate
- ALCR coating for additional heat and wear resistance
Product Specifications
| Manufacturer Part Number | 3950L.1000 |
| Cutting Diameter (Inch) | 1" |
| Cutting Diameter (Decimal Inch) | 1.000" |
| Overall Length (Inch) | 5" |
| Flute-Length (Inch) | 2" |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | Cylindrical - HA |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | Standard Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 5 |
| Flute Helix Angle (Degree) | 35-38 Degree |
| Cutting Edge Material | Carbide |
| Coating | ALCR |
| Tool Type | Ball Nose |
| End Mill - End Style | Ballnose End Mills |
| End Shape | Ball |
| Application | Finishing |
| Product Type | Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Mill Diameter (Inch):
1"
Mill Diameter (Decimal Inch):
1.0000"
Mill Diameter (mm):
25.40mm
Number of Flutes:
5
Overall Length (Inch):
5"
Overall Length (Decimal Inch):
5.0000"
Overall Length (mm):
127.00mm
Shank Diameter (Inch):
1"
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.40mm
Finish/Coating:
ALCR
Helix Angle:
35/38 Degree
Flute Direction:
Right Hand
Application:
Finishing
