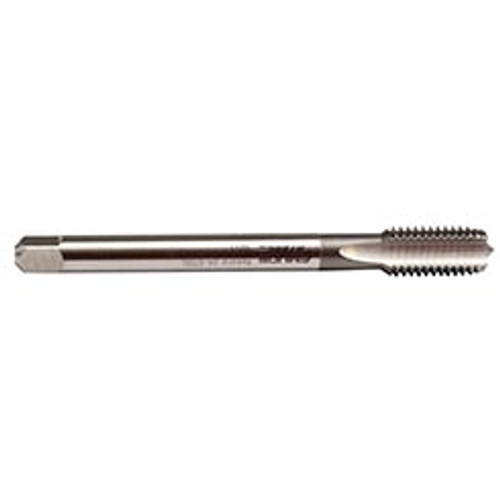

Emuge A0101001.0331 | M14 x 1.5 - Tap-Rekord A -Short Lgth

$92.88
Ships:
From Manufacturer
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
M14 X 1.5
Thread Limit:
6HX
Overall Length (Inch):
2-3/4"
Overall Length (Decimal Inch):
2.7560"
Overall Length (mm):
70mm
Number of Flutes:
4
Chamfer:
2 -3 P
Material:
HSSE
Finish/Coating:
Bright
Thread Standard:
MF
SKU:
15040226
Weight:
0.13 LBS
Shipping:
Free Shipping

Features:

  • Rekord A-Steel is a straight flute design best suited for short chipping steel material grades in through & blind hole applications
  • Longer tool life and more consistent thread quality

Product Specifications
Chamfer2 -3 P
Chamfer FormC
Pitch1.5
SizeM 14
Thread Limit6HX
Thread StandardMF
Applicable MaterialSteel & Cast Aluminum
ApplicationThrough & Blind Hole
Coolant FedNo
CoatingBright
MaterialHSSE
TypeRekord A-Steel
Length GroupDIN Length
Flutes4
Helix Angle (Degrees)0 Degree
Shank Diameter (mm)11 mm
Dimension StandardsDIN/DIN
Shank Toleranceh9
Overall Length (mm)70 mm
Thread Length (mm)22 mm
Flute DirectionRight Hand
