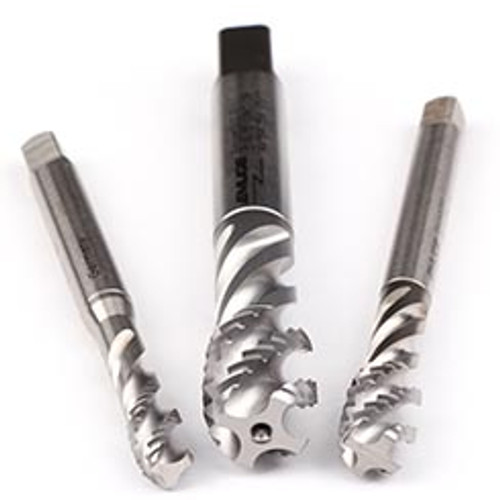

Emuge A0513500.0080 | M8-- Tap EnorMZ/E - ForME

$50.26
Ships:
From Manufacturer
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
M8 X 1.25
Thread Limit:
6H
Number of Flutes:
3
Chamfer:
1.5 -2 P
Material:
HSSE
Finish/Coating:
Bright
Flute Direction:
Right Hand
Overall Length (Inch):
2-31/64"
Overall Length (Decimal Inch):
2.4804"
Overall Length (mm):
63mm
SKU:
15040251
Weight:
0.04 LBS
Shipping:
Calculated at Checkout

Features:

  • The Enorm Z/E design is typically for blind hole threads in long chipping materials
  • Longer tool life and more consistent thread quality

Product Specifications
Chamfer1.5 -2 P
Chamfer FormE
Pitch1.25
SizeM 8
Thread Limit6H
Thread StandardM
Applicable MaterialLong Chipping Materials
ApplicationBlind Holes
Coolant FedNo
CoatingBright
MaterialHSSE
TypeEnorm Z/E
Length GroupDIN Length
Flutes3
Helix Angle (Degrees)45 Degree
Shank Diameter (mm)6 mm
Dimension StandardsDIN/DIN
Shank Toleranceh9
Overall Length (mm)63 mm
Thread Length (mm)20 mm
Flute DirectionRight Hand
