AU100501.5048-B

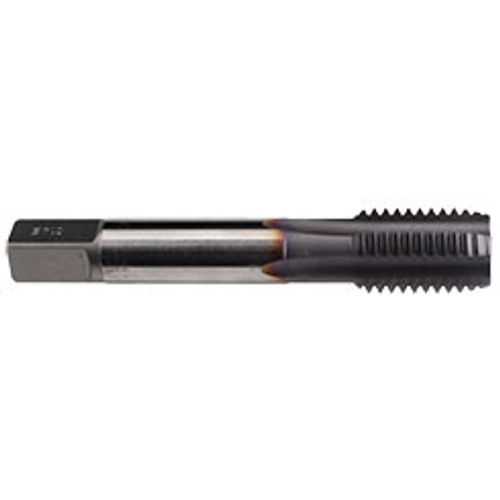

Emuge AU100501.5048 | UNF 9/16" - 18 Thread Size x 0.866" Length x 0.429" Shank x 3.594" OAL 4 Flute NT Coated HSSE Straight Flute Tap

SKU: 15037564 Weight: 0.10 LBS Minimum Purchase: 1 unit
UPC:
$125.64 $123.13
(You save $2.51)
Ships: From Manufacturer
Shipping: Calculated at Checkout

About This Item

Features:

  • Rekord A-H is a straight flute design best suited for short chipping, high tensile strength materials (cast iron & hardened steels) in through & blind hole applications
  • Longer tool life and more consistent thread quality

Product Specifications
Chamfer2 -3 P
Chamfer FormC
Pitch18
Size9/16"
Thread Limit2BX
Thread StandardUNF
Applicable MaterialHardened Steel, Cast Iron
ApplicationThrough & Blind Hole
Coolant FedNo
CoatingNT
MaterialHSSE
TypeRekord A-H
Length GroupANSI Length
Flutes4
Helix Angle (Degrees)0 Degree
Shank Diameter (mm)0.429"
Dimension StandardsANSI/ANSI
Shank Toleranceh9
Overall Length (mm)3.594"
Thread Length (mm)0.866"
Flute DirectionStraight
