Features:

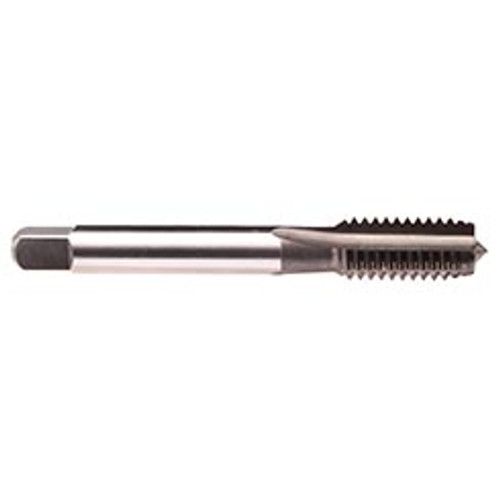

- Rekord A-H is a straight flute design best suited for short chipping, high tensile strength materials (cast iron & hardened steels) in through & blind hole applications
- Longer tool life and more consistent thread quality
Product Specifications
| Chamfer | 1.5 -2 P |
| Chamfer Form | E |
| Pitch | 1 |
| Size | M 6 |
| Thread Limit | 6HX |
| Thread Standard | M |
| Applicable Material | Hardened Steel, Cast Iron |
| Application | Through & Blind Hole |
| Coolant Fed | No |
| Coating | NT |
| Material | HSSE |
| Type | Rekord A-H |
| Length Group | ANSI Length |
| Flutes | 3 |
| Helix Angle (Degrees) | 0 Degree |
| Shank Diameter (mm) | 0.255" |
| Dimension Standards | ANSI/ANSI |
| Shank Tolerance | h9 |
| Overall Length (mm) | 2.5" |
| Thread Length (mm) | 0.669" |
| Flute Direction | Straight |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
M6 X 1
Thread Limit:
6HX
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.5mm
Number of Flutes:
3
Chamfer:
1.5 -2 P
Material:
HSSE
Finish/Coating:
NT
Thread Standard:
M
