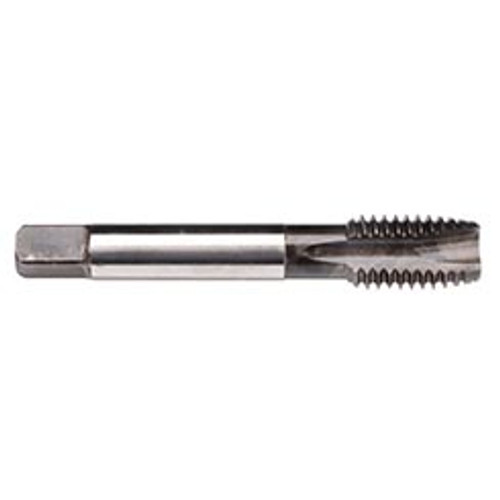

Features:
| Chamfer | 4 -5 P |
| Chamfer Form | B |
| Class | Oversize |
| Pitch | 18 |
| Size | 5/8" |
| Thread Limit | +0.005"(GH11) |
| Thread Standard | UNF |
| Applicable Material | Alloyed Steel & Stainless Steel |
| Application | Through Hole |
| Coolant Fed | No |
| Coating | NT |
| Material | HSSE |
| Type | Rekord B-VA |
| Length Group | ANSI Length |
| Flutes | 3 |
| Helix Angle (Degrees) | 0 Degree |
| Shank Diameter (mm) | 0.480" |
| Dimension Standards | ANSI/ANSI |
| Shank Tolerance | h9 |
| Overall Length (mm) | 3.811" |
| Thread Length (mm) | 0.866" |
| Flute Direction | Straight |
