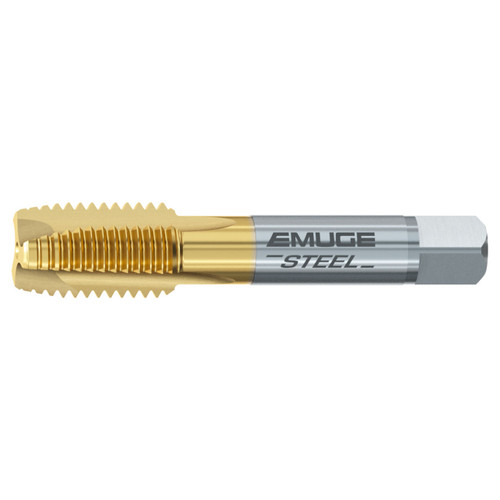

Features:
- Rekord B-Steel-L design is typically for through hole applications in long-chipping materials.
- Specially adapted flute shape, rake angle and relief angle for long tool life
- ANSI/ANSI taps manufactured to ANSI length and ANSI shank dimension
- TIN coated for heat and wear resistance
Product Specifications
| Manufacturer Part Number | AU208400.0060 |
| Thread Size | M 6x1 |
| Thread Diameter Size | M 6 |
| Tap Square (Decimal Inch) | 0.191" |
| Thread Length (Decimal Inch) | 0.669" |
| Overall Length (Decimal Inch) | 2.500" |
| Length Group | ANSI Length |
| Number of Flutes | 3 |
| Dimensional Standard | ANSI/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Thread Standard | M |
| Thread Tolerance Class | ISO 2/6H |
| Tap Chamfer | 4 -5 P |
| Tap Chamfer Form | B |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Coating | TiN |
| Product Type | Straight Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Thread Size:
M 6x1
Thread Diameter Size:
M 6
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Thread Length (Inch):
2/3"
Thread Length (Decimal Inch):
0.6690"
Thread Length (mm):
16.99mm
Number of Flutes:
3
Coating:
TiN
interval quantity:
1
