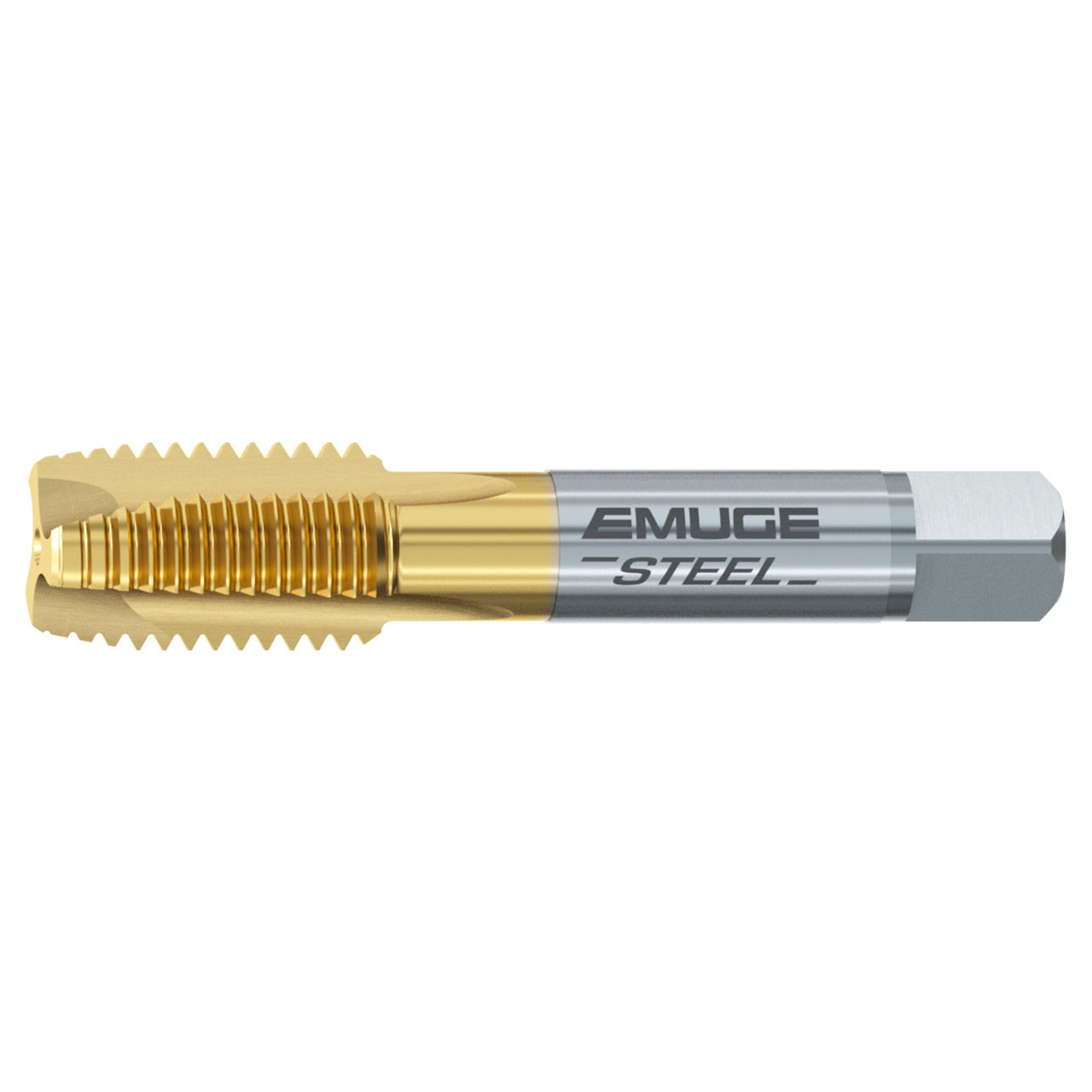

Emuge AU208400.5043 | 1/4"-28 Thread Size x 0.669" Thread Length x 0.191" Tap Square 3 Flute TiN Coated Straight Flute Tap

Emuge AU208400.5043 | 1/4"-28 Thread Size x 0.669" Thread Length x 0.191" Tap Square 3 Flute TiN Coated Straight Flute Tap

SKU: 15037719 Weight: 0.02 LBS Minimum Purchase: 1 unit
UPC:
$56.53 $55.40
(You save $1.13)
Shipping: Calculated at Checkout

About This Item

Features:

  • Rekord B-Steel-L design is typically for through hole applications in long-chipping materials.
  • Specially adapted flute shape, rake angle and relief angle for long tool life
  • ANSI/ANSI taps manufactured to ANSI length and ANSI shank dimension
  • TIN coated for heat and wear resistance

Product Specifications
Manufacturer Part NumberAU208400.5043
Thread Size1/4"-28
Thread Diameter Size1/4"
Thread Per Inch (TPI)28 TPI
Tap Square (Decimal Inch)0.191"
Thread Length (Decimal Inch)0.669"
Overall Length (Decimal Inch)2.500"
Length GroupANSI Length
Number of Flutes3
Dimensional StandardANSI/ANSI
Shank Toleranceh9
Flute DirectionStraight
Thread StandardUNF
Thread Tolerance Class2B
Tap Chamfer4 -5 P
Tap Chamfer FormB
Coolant Supply PropertyExternal
Cutting Edge MaterialHSSE
CoatingTiN
Product TypeStraight Flute Tap
