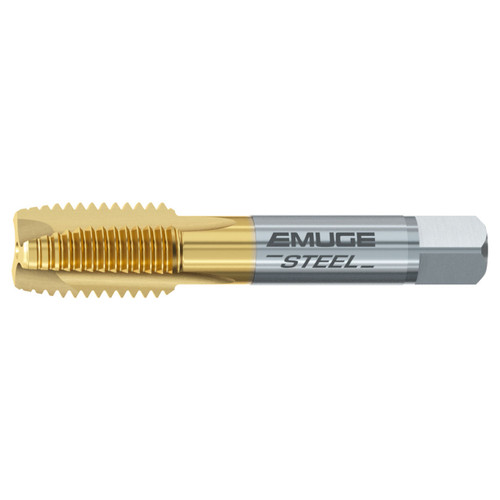

Features:
- Rekord B-Steel-L design is typically for through hole applications in long-chipping materials.
- Specially adapted flute shape, rake angle and relief angle for long tool life
- ANSI/ANSI taps manufactured to ANSI length and ANSI shank dimension
- TIN coated for heat and wear resistance
Product Specifications
| Manufacturer Part Number | AU208400.0120 |
| Thread Size | M 20x2.5 |
| Thread Diameter Size | M 20 |
| Tap Square (Decimal Inch) | 0.489" |
| Thread Length (Decimal Inch) | 1.181" |
| Overall Length (Decimal Inch) | 4.469" |
| Length Group | ANSI Length |
| Number of Flutes | 3 |
| Dimensional Standard | ANSI/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Thread Standard | M |
| Thread Tolerance Class | ISO 2/6H |
| Tap Chamfer | 4 -5 P |
| Tap Chamfer Form | B |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Coating | TiN |
| Product Type | Straight Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Thread Size:
M 20x2.5
Thread Diameter Size:
M 20
Overall Length (Inch):
4-15/32"
Overall Length (Decimal Inch):
4.4690"
Overall Length (mm):
113.51mm
Thread Length (Inch):
1-2/11"
Thread Length (Decimal Inch):
1.1810"
Thread Length (mm):
30.00mm
Number of Flutes:
3
Coating:
TiN
