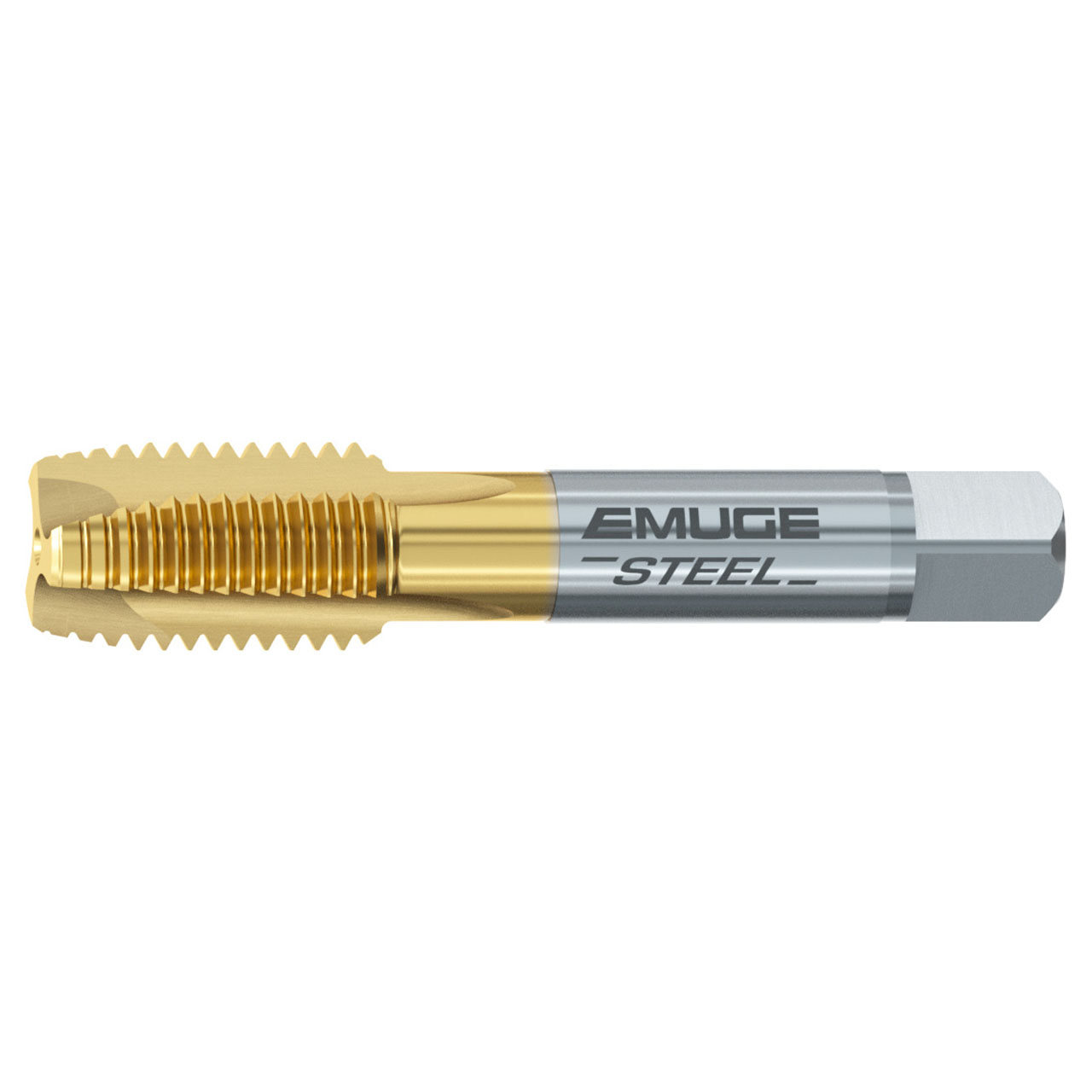

Emuge AU208400.5007 | #10-24 Thread Size x 0.591" Thread Length x 0.152" Tap Square 3 Flute TiN Coated Straight Flute Tap

Emuge AU208400.5007 | #10-24 Thread Size x 0.591" Thread Length x 0.152" Tap Square 3 Flute TiN Coated Straight Flute Tap

SKU: 15037707 Weight: 0.02 LBS Minimum Purchase: 1 unit
UPC:
$49.56 $48.57
(You save $0.99)
Shipping: Calculated at Checkout

About This Item

Features:

  • Rekord B-Steel-L design is typically for through hole applications in long-chipping materials.
  • Specially adapted flute shape, rake angle and relief angle for long tool life
  • ANSI/ANSI taps manufactured to ANSI length and ANSI shank dimension
  • TIN coated for heat and wear resistance

Product Specifications
Manufacturer Part NumberAU208400.5007
Thread Size#10-24
Thread Diameter Size#10
Thread Per Inch (TPI)24 TPI
Tap Square (Decimal Inch)0.152"
Thread Length (Decimal Inch)0.591"
Overall Length (Decimal Inch)2.374"
Length GroupANSI Length
Number of Flutes3
Dimensional StandardANSI/ANSI
Shank Toleranceh9
Flute DirectionStraight
Thread StandardUNC
Thread Tolerance Class2B
Tap Chamfer4 -5 P
Tap Chamfer FormB
Coolant Supply PropertyExternal
Cutting Edge MaterialHSSE
CoatingTiN
Product TypeStraight Flute Tap
