Features:

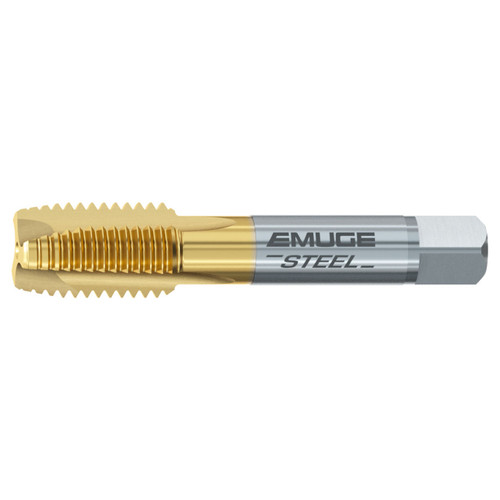

- Rekord B-Steel-L design is typically for through hole applications in long-chipping materials.
- Specially adapted flute shape, rake angle and relief angle for long tool life
- ANSI/ANSI taps manufactured to ANSI length and ANSI shank dimension
- TIN coated for heat and wear resistance
Product Specifications
| Manufacturer Part Number | AU208400.5014 |
| Thread Size | 9/16"-12 |
| Thread Diameter Size | 9/16" |
| Thread Per Inch (TPI) | 12 TPI |
| Tap Square (Decimal Inch) | 0.322" |
| Thread Length (Decimal Inch) | 1.024" |
| Overall Length (Decimal Inch) | 3.594" |
| Length Group | ANSI Length |
| Number of Flutes | 3 |
| Dimensional Standard | ANSI/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Thread Standard | UNC |
| Thread Tolerance Class | 2B |
| Tap Chamfer | 4 -5 P |
| Tap Chamfer Form | B |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Coating | TiN |
| Product Type | Straight Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Thread Size:
9/16-12"
Thread Diameter Size:
9/16"
Thread Per Inch (TPI):
12 TPI
Overall Length (Inch):
3-19/32"
Overall Length (Decimal Inch):
3.5940"
Overall Length (mm):
91.29mm
Thread Length (Inch):
1-2/83"
Thread Length (Decimal Inch):
1.0240"
Thread Length (mm):
26.01mm
Number of Flutes:
3
Coating:
TiN
