Features:

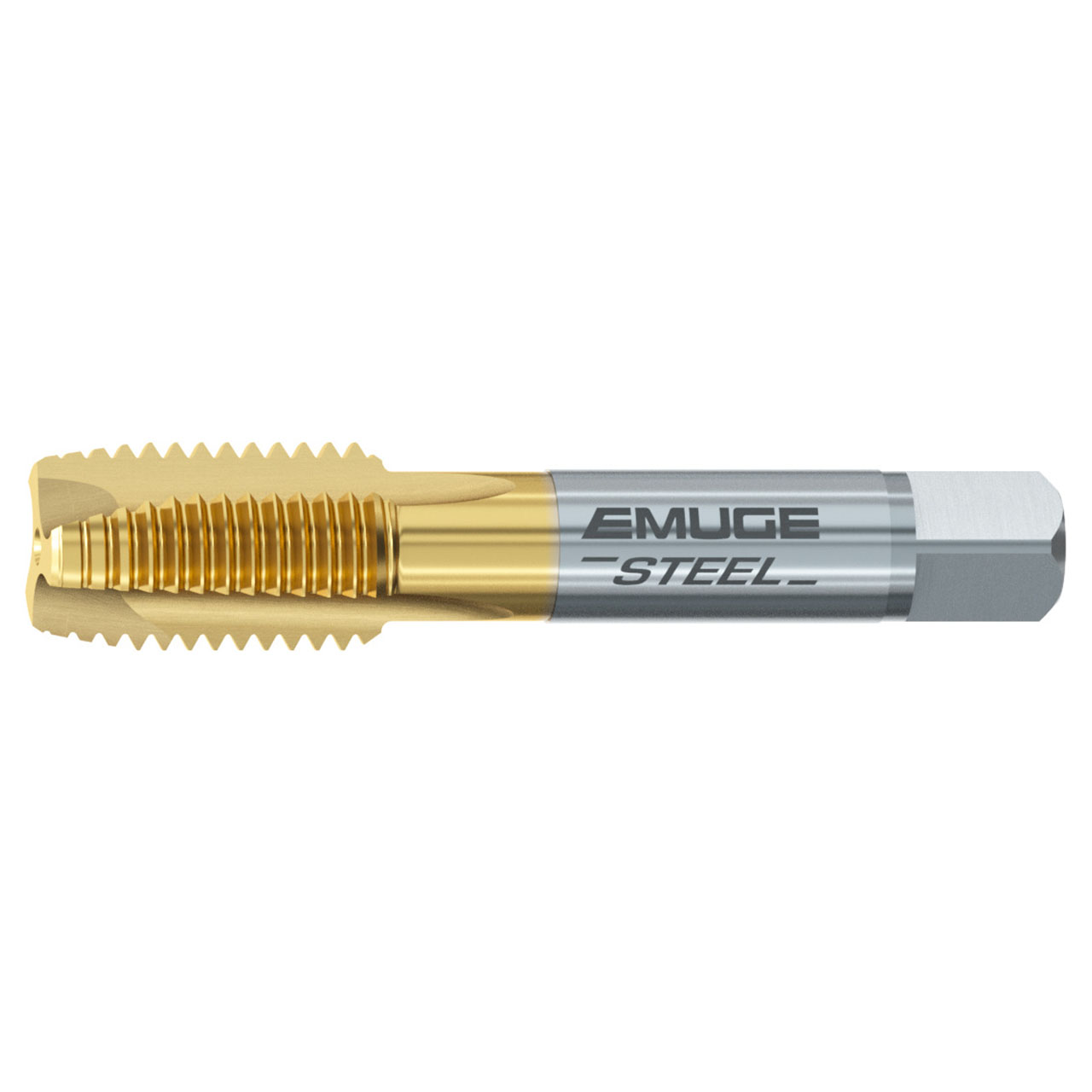

- Rekord B-Steel-L design is typically for through hole applications in long-chipping materials.
- Specially adapted flute shape, rake angle and relief angle for long tool life
- ANSI/ANSI taps manufactured to ANSI length and ANSI shank dimension
- TIN coated for heat and wear resistance
Product Specifications
| Manufacturer Part Number | AU208400.5046 |
| Thread Size | 7/16"-20 |
| Thread Diameter Size | 7/16" |
| Thread Per Inch (TPI) | 20 TPI |
| Tap Square (Decimal Inch) | 0.242" |
| Thread Length (Decimal Inch) | 0.866" |
| Overall Length (Decimal Inch) | 3.157" |
| Length Group | ANSI Length |
| Number of Flutes | 4 |
| Dimensional Standard | ANSI/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Thread Standard | UNF |
| Thread Tolerance Class | 2B |
| Tap Chamfer | 4 -5 P |
| Tap Chamfer Form | B |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Coating | TiN |
| Product Type | Straight Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Thread Size:
7/16-20"
Thread Diameter Size:
7/16"
Thread Per Inch (TPI):
20 TPI
Overall Length (Inch):
3-8/51"
Overall Length (Decimal Inch):
3.1570"
Overall Length (mm):
80.19mm
Thread Length (Inch):
84/97"
Thread Length (Decimal Inch):
0.8660"
Thread Length (mm):
22.00mm
Number of Flutes:
4
Coating:
TiN
