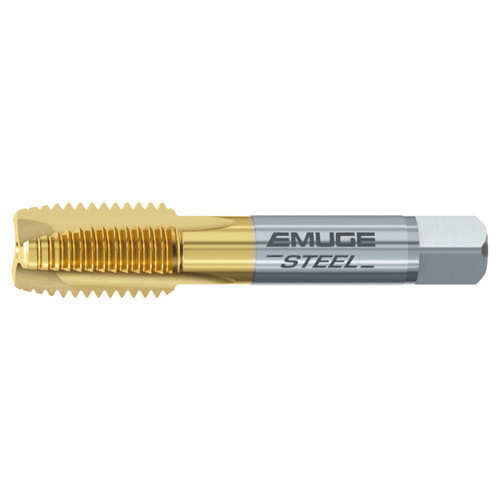

Emuge AU208400.5050 | 3/4"-16 Thread Size x 0.984" Thread Length x 0.442" Tap Square 4 Flute TiN Coated Straight Flute Tap

Emuge AU208400.5050 | 3/4"-16 Thread Size x 0.984" Thread Length x 0.442" Tap Square 4 Flute TiN Coated Straight Flute Tap

SKU: 15037726 Weight: 0.20 LBS Minimum Purchase: 1 unit
UPC:
$213.14 $208.88
(You save $4.26)
Shipping: Calculated at Checkout

About This Item

Features:

  • Rekord B-Steel-L design is typically for through hole applications in long-chipping materials.
  • Specially adapted flute shape, rake angle and relief angle for long tool life
  • ANSI/ANSI taps manufactured to ANSI length and ANSI shank dimension
  • TIN coated for heat and wear resistance

Product Specifications
Manufacturer Part NumberAU208400.5050
Thread Size3/4"-16
Thread Diameter Size3/4"
Thread Per Inch (TPI)16 TPI
Tap Square (Decimal Inch)0.442"
Thread Length (Decimal Inch)0.984"
Overall Length (Decimal Inch)4.252"
Length GroupANSI Length
Number of Flutes4
Dimensional StandardANSI/ANSI
Shank Toleranceh9
Flute DirectionStraight
Thread StandardUNF
Thread Tolerance Class2B
Tap Chamfer4 -5 P
Tap Chamfer FormB
Coolant Supply PropertyExternal
Cutting Edge MaterialHSSE
CoatingTiN
Product TypeStraight Flute Tap
