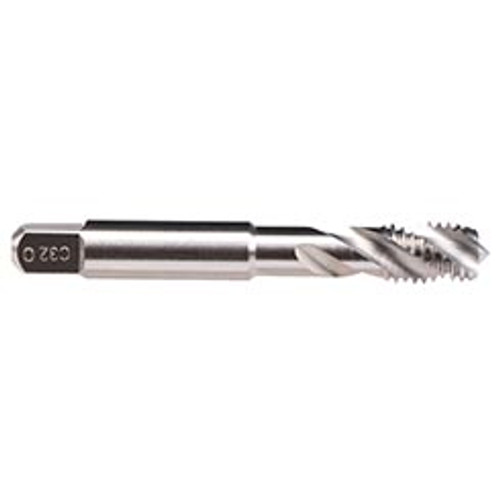

Emuge AU503000.0060 | M6x1.00mm Thread Size x 0.669" Length x 0.255" Shank x 2.500" OAL x 35 Degree Helix Angle 3 Flute Bright Coated HSSE Spiral Flute Tap

SKU: 15043221 Weight: 0.03 LBS Minimum Purchase: 1 unit
UPC:
$59.69 $58.50
(You save $1.19)
Ships: From Manufacturer
Shipping: Calculated at Checkout

About This Item

Features:

  • The Enorm VA design is typically for blind hole threads in long chipping materials. The fast spiral flute (35 Degree) provides good chip removal from blind holes
  • Longer tool life and more consistent thread quality

Product Specifications
Chamfer2 -3 P
Chamfer FormC
Pitch1
SizeM 6
Thread LimitISO 2/6H
Thread StandardM
Applicable MaterialAlloyed Steel & Long Chipping Materials
ApplicationBlind Hole
Coolant FedNo
CoatingBright
MaterialHSSE
TypeEnorm VA
Length GroupANSI Length
Flutes3
Helix Angle (Degrees)35 Degree
Shank Diameter (mm)0.255"
Dimension StandardsANSI/ANSI
Shank Toleranceh9
Overall Length (mm)2.5"
Thread Length (mm)0.669"
Flute DirectionRight Hand
