Features:

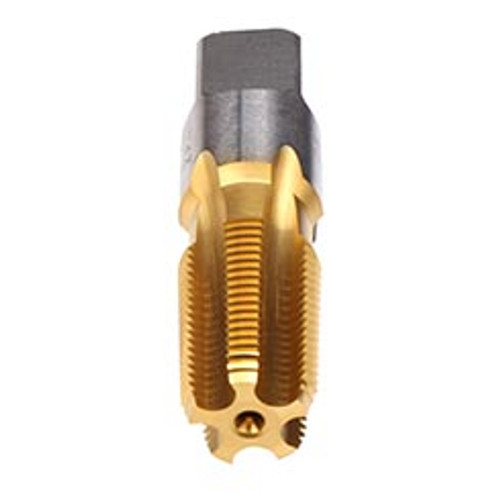

- Rekord KEG straight flute NPT/NPTF pipe tap for through & blind hole applications in short chipping cast iron, short chipping brass also steel materials
- Longer tool life and more consistent thread quality
Product Specifications
| Chamfer | 2 -3 P |
| Chamfer Form | C |
| Pitch | 14 |
| Size | 1/2" |
| Thread Standard | NPTF |
| Applicable Material | Cast Iron, Cast Steel, Brass |
| Application | Through & Blind Hole |
| Coolant Fed | No |
| Coating/Finish | TIN |
| Material | HSSE |
| Type | Rekord KEG |
| Length Group | ANSI Length |
| Number of Flutes | 5 |
| Helix Angle (Degrees) | 0 Degree |
| Shank Diameter (mm) | 0.6875" |
| Dimension Standards | ANSI/ANSI |
| Shank Tolerance | h9 |
| Overall Length (mm) | 3.126" |
| Thread Length (mm) | 1.38" |
| Flute Direction | Straight |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
1/2"-14
Thread Standard:
NPTF
Material:
HSSE
Number of Flutes:
5
Finish/Coating:
TIN
Chamfer:
2 -3 P
