Features:

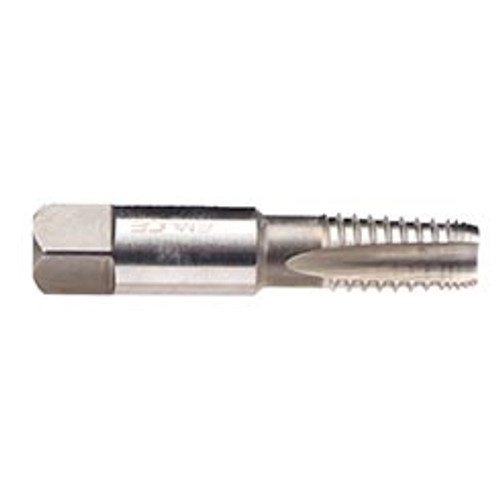

- Rekord KEG-VA straight flute NPT / NPTF skip tooth pipe tap for through or blind hole applications in stainless steel and steel materials
- Longer tool life and more consistent thread quality
Product Specifications
| Chamfer | 2 -3 P |
| Chamfer Form | C |
| Pitch | 27 |
| Size | 1/16" |
| Thread Standard | NPTF |
| Applicable Material | Stainless Steel & Steel Alloys |
| Application | Through & Blind Hole |
| Coolant Fed | No |
| Coating | Bright |
| Material | HSSE |
| Type | Rekord KEG-VA |
| Length Group | ANSI Length |
| Flutes | 3 |
| Helix Angle (Degrees) | 0 Degree |
| Shank Diameter (mm) | 0.3125" |
| Dimension Standards | ANSI/ANSI |
| Shank Tolerance | h9 |
| Overall Length (mm) | 2.126" |
| Thread Length (mm) | 0.69" |
| Flute Direction | Straight |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Manufacturer
Brand:
Emuge
Thread Size (Inch):
1/16"-27
Thread Standard:
NPTF
Material:
HSSE
Finish/Coating:
Bright
Number of Flutes:
3
Chamfer:
2 -3 P
Cutting Direction:
Right Hand
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (mm):
7.94mm
