Features:

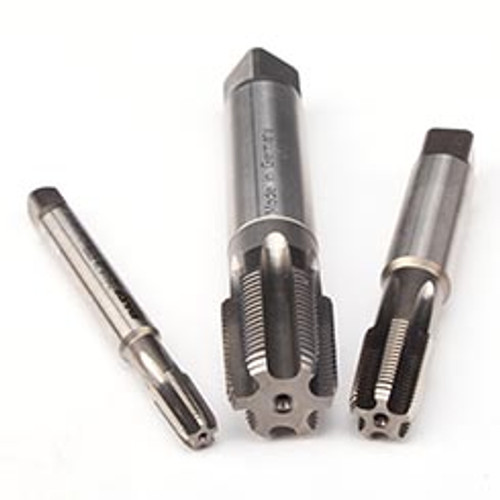

- Rekord KEG R10-NI pipe tap is a slow spiral design for NPT or NPTF through and blind hole applications
- Longer tool life and more consistent thread quality
Product Specifications
| Chamfer | 2 -3 P |
| Chamfer Form | C |
| Pitch | 18 |
| Size | 3/8" |
| Thread Standard | NPT |
| Applicable Material | Nickel Alloys & High Tensile Materials |
| Application | Through & Blind Hole |
| Coolant Fed | No |
| Coating | TICN |
| Material | HSSE |
| Type | Rekord KEG R10-NI |
| Length Group | ANSI Length |
| Flutes | 4 |
| Helix Angle (Degrees) | 10 Degree |
| Shank Diameter (mm) | 0.7000" |
| Dimension Standards | ANSI/ANSI |
| Shank Tolerance | h9 |
| Overall Length (mm) | 2.56" |
| Thread Length (mm) | 1.06" |
| Flute Direction | Right Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
3/8"-18
Thread Standard:
NPT
Material:
HSSE
Finish/Coating:
TICN
Number of Flutes:
4
Overall Length (Inch):
2-9/16"
Overall Length (Decimal Inch):
2.5600"
Overall Length (mm):
65.02mm
Chamfer:
2 -3 P
Shank Diameter (Inch):
45/64"
Shank Diameter (Decimal Inch):
0.7000"
Shank Diameter (mm):
17.78mm
