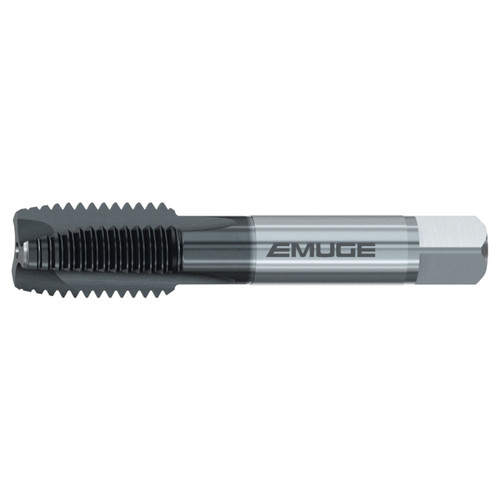

Emuge AX321001.5015 | 5/8"-11 Thread Size x 1.063" Thread Length 3 Flute GLT-1 Coated Straight Flute Tap

Emuge AX321001.5015 | 5/8"-11 Thread Size x 1.063" Thread Length 3 Flute GLT-1 Coated Straight Flute Tap

SKU: 15037952 Weight: 0.16 LBS Minimum Purchase: 1 unit
UPC:
$166.60 $163.27
(You save $3.33)
Shipping: Calculated at Checkout

About This Item

Features:

  • Aero-HSF taps are designed for aerospace fastener threading but can be used in similar applications.
  • Longer tool life and more consistent thread quality
  • ANSI/ANSI taps manufactured to ANSI length and ANSI shank dimension

Product Specifications
Manufacturer Part NumberAX321001.5015
Thread Size5/8"-11
Thread Diameter Size5/8"
Thread Per Inch (TPI)11 TPI
Thread Length (Decimal Inch)1.063"
Overall Length (Decimal Inch)3.813"
Length GroupANSI Length
Number of Flutes3
Dimensional StandardANSI/ANSI
Shank Toleranceh9
Flute DirectionStraight
Thread StandardUNC
Thread Tolerance ClassH3
Tap Chamfer4 -5 P
Tap Chamfer FormB
Coolant Supply PropertyExternal
Cutting Edge MaterialHSSE
CoatingGLT-1
Product TypeStraight Flute Tap
