Features:

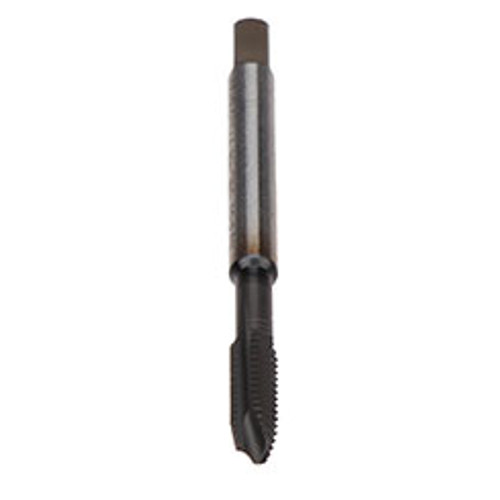

- Aero-HSF taps are designed for aerospace fastener threading but can be used in similar applications
- Longer tool life and more consistent thread quality
Product Specifications
| Chamfer | 4 -5 P |
| Chamfer Form | B |
| Pitch | 28 |
| Size | 12 |
| Thread Limit | H6 |
| Thread Standard | UNF |
| Applicable Material | Nickel Alloys & Aerospace Alloys |
| Application | Through Hole |
| Coolant Fed | No |
| Coating | GLT-1 |
| Material | HSSE |
| Type | Aero-HSF |
| Length Group | ANSI Length |
| Flutes | 3 |
| Helix Angle (Degrees) | 0 Degree |
| Shank Diameter (mm) | 0.220" |
| Dimension Standards | ANSI/ANSI |
| Shank Tolerance | h9 |
| Overall Length (mm) | 2.375" |
| Flute Length (mm) | 0.984 |
| Thread Length (mm) | 0.63" |
| Flute Direction | Straight |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
12-28
Thread Limit:
H6
Number of Flutes:
3
Thread Standard:
UNF
Chamfer:
4 -5 P
Finish/Coating:
No
Material:
HSSE
