Features:

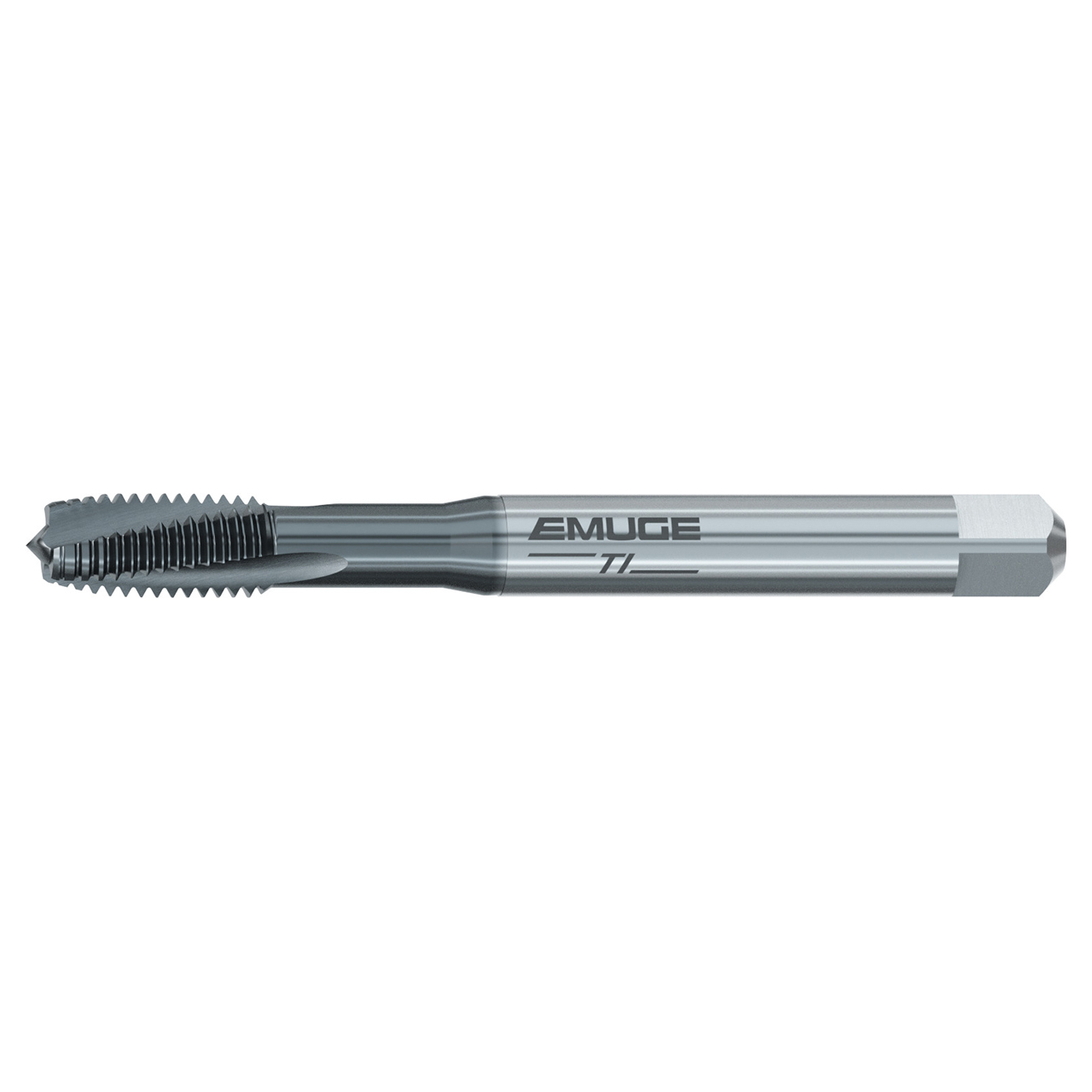

- Rekord C-TI is a left hand spiral tap designed for titanium alloys and high tensile strength materials
- Best suited for through hole applications
- Longer tool life and more consistent thread quality
- Constant rake angle over the entire chamfer length enables very stable chamfer teeth for machining high-strength materials
Product Specifications
| Manufacturer Part Number | B0309611.5482 |
| Thread Size | #8-32 |
| Thread Diameter Size | #8 |
| Thread Standard | UNJC |
| Thread per Inch (TPI) | 32 TPI |
| Tap Square (mm) | 3.40mm |
| Thread Length (mm) | 13.00mm |
| Overall Length (mm) | 63.00mm |
| Tap Chamfer | 4-5 P |
| Tap Chamfer Form | D |
| Class of Fit | 3BX |
| Dimensional Standards | DIN / DIN |
| Shank Tolerance | h9 |
| Flute Direction | Left Hand |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Flute Helix Angle (Degree) | 15 Degree |
| Cutting Edge Material | HSSE |
| Coating | TICN |
| Tool Type | Rekord C-TI |
| Application | Spiral Flute Taps |
| Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Thread Size:
#8-32
Finish/Coating:
TICN
Flute Direction:
Left Hand
Threads per Inch (TPI):
32
Overall Length (Inch):
2-31/64"
Overall Length (Decimal Inch):
2.4803"
Overall Length (mm):
63.00mm
