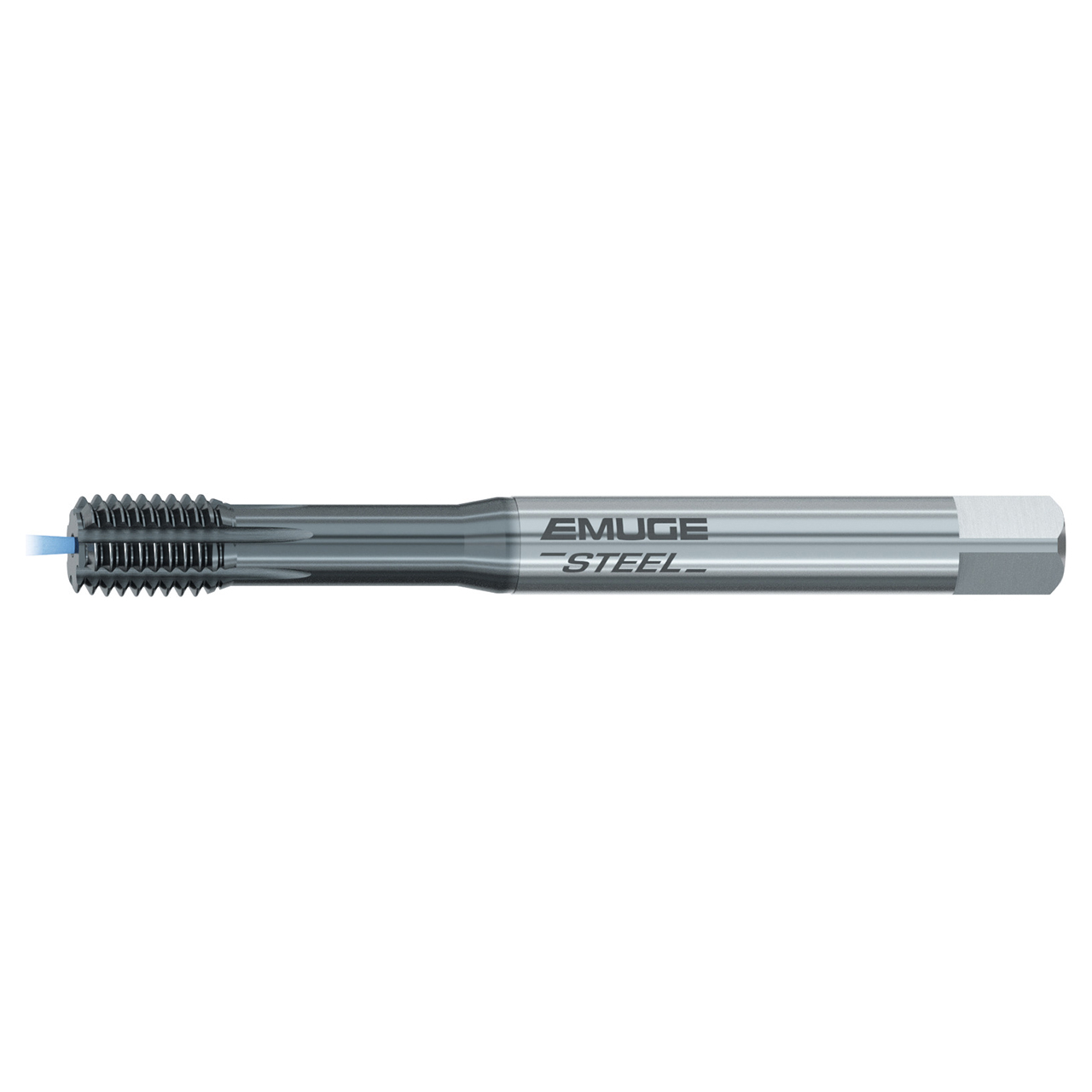

Emuge B5236F00.0040 | M 4x0.7 Thread Size x 4.5.00mm Shank x 63.00mm OAL TiCN-67 Coated Thread Forming Tap

Emuge B5236F00.0040 | M 4x0.7 Thread Size x 4.5.00mm Shank x 63.00mm OAL TiCN-67 Coated Thread Forming Tap

SKU: 15040888 Weight: 1.23 LBS Minimum Purchase: 1 unit
UPC:
$179.00 $175.42
(You save $3.58)
Shipping: Calculated at Checkout

About This Item

Features:

  • The InnoForm Steel-H roll form tap is designed for high tensile strength materials
  • Axial coolant fed to maximize chip evacuation and improve thread quality
  • TICN-67 coating for less wear and longer tool life
  • DIN/DIN standard dimensions for overall length and shank size

Product Specifications
Manufacturer Part NumberB5236F00.0040
Thread SizeM 4x0.7
Thread Diameter SizeM 4
Thread StandardM
Thread Pitch (mm)0.70mm
Tap Square (mm)3.40mm
Thread Length (mm)7.00mm
Overall Length (mm)63.00mm
Thread Tolerance Class6HX
Tap Chamfer2-3 P
Tap Chamfer FormC
Dimensional StandardsDIN/DIN
Shank Toleranceh9
Flute DirectionStraight
Group LengthDIN Length
Coolant Supply PropertyInternal
Coolant FedAxial
Cutting Edge MaterialHSSE-PM
CoatingTiCN-67
Tool TypeEMUGE STEEL
ApplicationForm Taps
Product TypeThread Forming Tap
