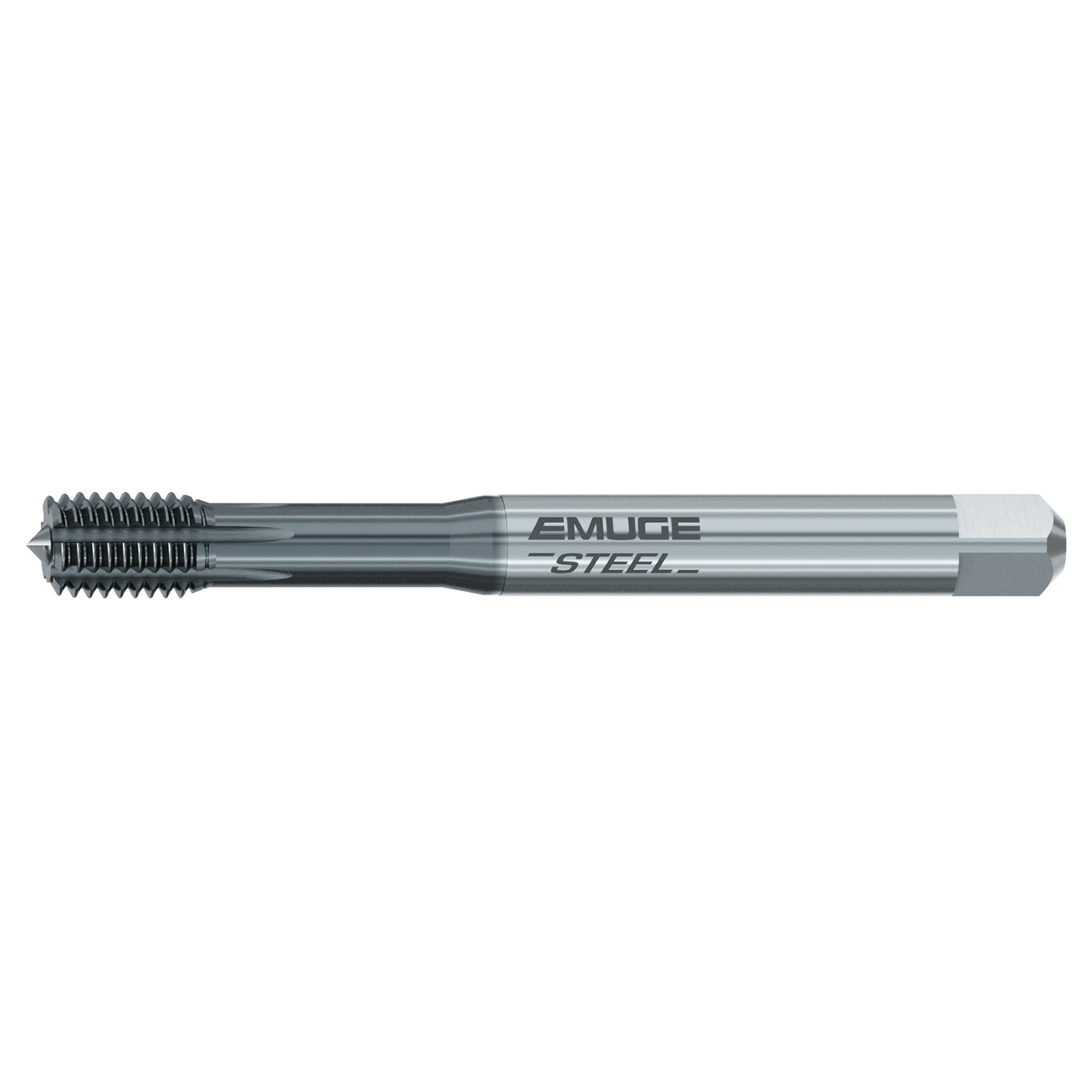

Emuge B5216F00.0100 | M 10x1.5 Thread Size x 10.00mm Shank x 100.00mm OAL TiCN-67 Coated Thread Forming Tap

Emuge B5216F00.0100 | M 10x1.5 Thread Size x 10.00mm Shank x 100.00mm OAL TiCN-67 Coated Thread Forming Tap

SKU: 15040844 Weight: 1.23 LBS Minimum Purchase: 1 unit
UPC:
$208.58 $204.41
(You save $4.17)
Shipping: Calculated at Checkout

About This Item

Features:

  • The InnoForm Steel H roll form tap is designed for high strength steel materials
  • Short threaded part and special polygon shape for less torque
  • TICN-67 coating for less wear and longer tool life
  • DIN/DIN standard dimensions for overall length and shank size

Product Specifications
Manufacturer Part NumberB5216F00.0100
Thread SizeM 10x1.5
Thread Diameter SizeM 10
Thread StandardM
Thread Pitch (mm)1.50mm
Tap Square (mm)8.00mm
Thread Length (mm)16.00mm
Overall Length (mm)100.00mm
Thread Tolerance Class6HX
Tap Chamfer2-3 P
Tap Chamfer FormC
Dimensional StandardsDIN/DIN
Shank Toleranceh9
Flute DirectionStraight
Group LengthDIN Length
Coolant Supply PropertyExternal
Coolant FedNo
Cutting Edge MaterialHSSE-PM
CoatingTiCN-67
Tool TypeEMUGE STEEL
ApplicationForm Taps
Product TypeThread Forming Tap
