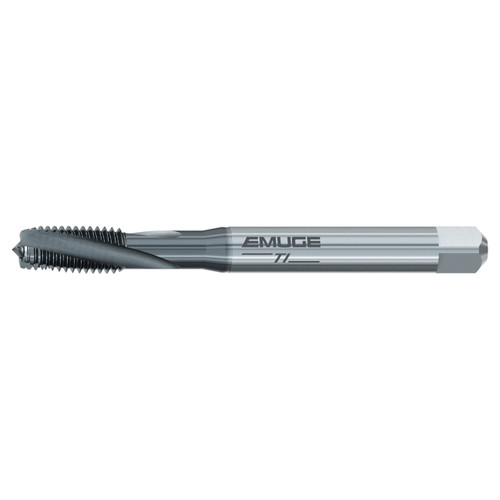

Emuge B0459611.5487 | UNJC 3/8"-16 Size x 10.00mm Shank x 22.00mm Thread Length x 100.00mm OAL x 15 Degree Helix Angle 3BX Class TICN Coated HSSE Spiral Flute Tap

Emuge B0459611.5487 | UNJC 3/8"-16 Size x 10.00mm Shank x 22.00mm Thread Length x 100.00mm OAL x 15 Degree Helix Angle 3BX Class TICN Coated HSSE Spiral Flute Tap

SKU: 17984529 Weight: 1.23 LBS Minimum Purchase: 1 unit
UPC:
$158.32 $155.15
(You save $3.17)
Shipping: Calculated at Checkout

About This Item

Features:

  • Rekord D-TI tap is a slow spiral design for blind holes
  • Best suited for titanium and high tensile strength materials
  • Spiral point creates tight curled chips that are pushed ahead of the tap

Product Specifications
Manufacturer Part NumberB0459611.5487
Thread Size3/8"-16"
Thread Diameter Size (Inch)3/8"
Thread StandardUNJC
Thread per Inch (TPI)16 TPI
Tap Square (mm)8.00mm
Thread Length (mm)22.00mm
Overall Length (mm)100.00mm
Tap Chamfer2-3 P
Tap Chamfer FormC
Class of Fit3BX
Dimensional StandardsDIN / DIN
Shank Toleranceh9
Flute DirectionRight Hand
Group LengthDIN Length
Coolant Supply PropertyExternal
Coolant FedNo
Flute Helix Angle (Degree)15 Degree
Cutting Edge MaterialHSSE
CoatingTICN
Tool TypeRekord D-TI
ApplicationSpiral Flute Taps
Product TypeSpiral Flute Tap
