Features:

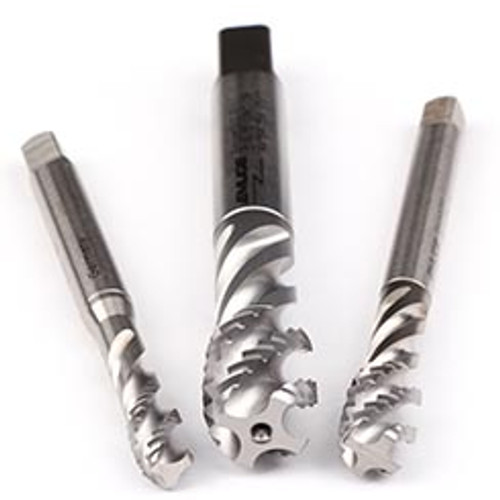

- The Enorm Z/E design is typically for blind hole threads in long chipping materials
- Longer tool life and more consistent thread quality
Product Specifications
| Chamfer | 1.5 -2 P |
| Chamfer Form | E |
| Pitch | 0.5 |
| Size | M 3 |
| Thread Limit | 6H mod |
| Thread Standard | STI-M |
| Applicable Material | Long Chipping Materials |
| Application | Blind Hole |
| Coolant Fed | No |
| Coating/Finish | Bright |
| Material | HSSE |
| Type | Enorm Z/E |
| Length Group | DIN Length |
| Number of Flutes | 3 |
| Helix Angle (Degrees) | 45 Degree |
| Shank Diameter (mm) | 4.5 mm |
| Dimension Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Overall Length (mm) | 63 mm |
| Thread Length (mm) | 10 mm |
| Flute Direction | Right Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
M3 X 0.5
Thread Limit:
6H mod
Number of Flutes:
3
Chamfer:
1.5 -2 P
Material:
HSSE
Finish/Coating:
Bright
Overall Length (Inch):
2-31/64"
Overall Length (Decimal Inch):
2.4803"
Overall Length (mm):
63mm
Thread Standard:
STI-M
Thread Length (Inch):
25/64"
Thread Length (Decimal Inch):
0.3938"
Thread Length (mm):
10mm
Shank Diameter (Inch):
11/64"
Shank Diameter (Decimal Inch):
0.1771"
Shank Diameter (mm):
4.5mm
